Product Description

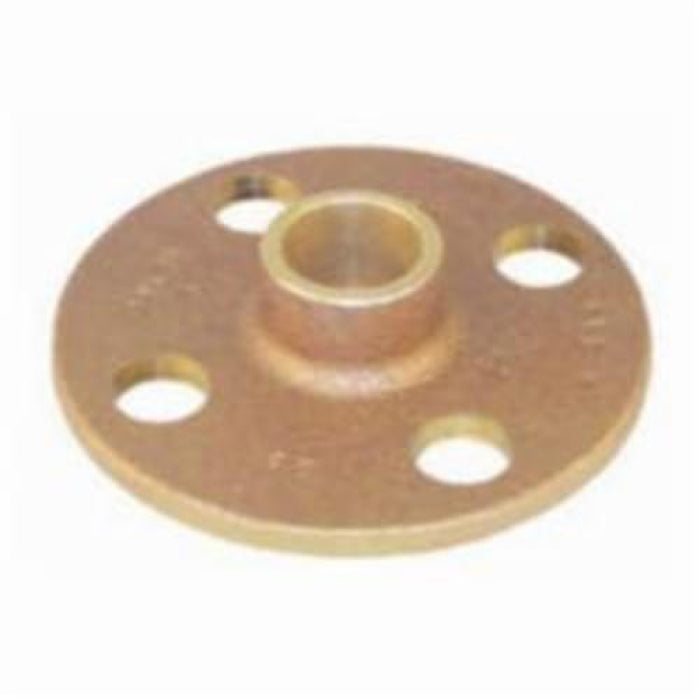

The EPC Companion Flange with MPN 10056628 is a soldering component for piping systems. It features a nominal size of two inches and a connection type of C x C. This flange is made from cast brass and is suitable for various domestic piping applications.
- Nominal size: 2 inches
- Material: Cast Brass
- Pressure class: 125 lb
Product Highlights
This flange is designed for use in piping systems that require a strong connection and durability.
Product Information
Standard Information
-
Brand: EPC
-
Manufacturer: Elkhart Products Company

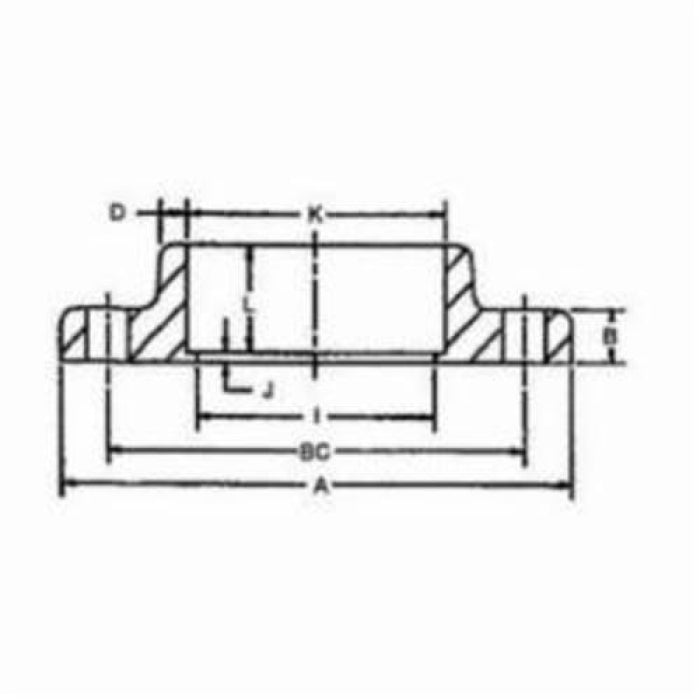

Technical Specifications
-
Inside Diameter: 2.128 to 2.133 inches
-
Outside Diameter: 6 inches
-
Thickness: 0.31 inches
-
Bolt Circle Diameter: 4-3/4 inches
-
Bolt Hole Size: 3/4 inches
-
Number of Bolt Holes: 4
-
Connection Type: C x C
-
Series: 4741
