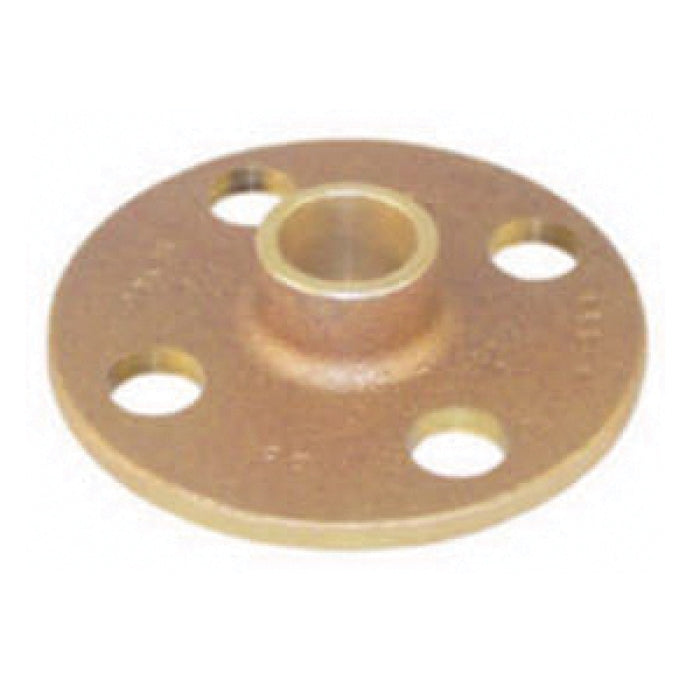

EPC 10051250 Solder Companion Flange 1-1/4 in 125 lb

Product Description

The EPC 10051250 is a solder companion flange made by Elkhart Products Company. This flange is designed for plumbing and mechanical applications. It is made from lead-free cast brass and compatible with copper tubes according to ASTM standards.

• Nominal size of one and one-fourth inches
• Designed with a four-bolt pattern for secure installation
• Manufactured in the United States

Product Highlights

This flange allows for easy connection of copper piping, ensuring a reliable seal for plumbing systems.

Product Information

Standard Information

• Brand: EPC
• Manufacturer: Elkhart Products Company

Technical Specifications

• Nominal Size: 1-1/4 inches
• Inside Diameter: 1.378 to 1.382 inches
• Outside Diameter: 4.62 inches
• Thickness: 0.19 inches
• Material: Cast Brass
• Pressure Class: 125 lb
• Connection Type: C x C
• Bolt Circle Diameter: 3-1/2 inches
• Bolt Hole Size: 0.62 inches
• Number of Bolt Holes: 4
