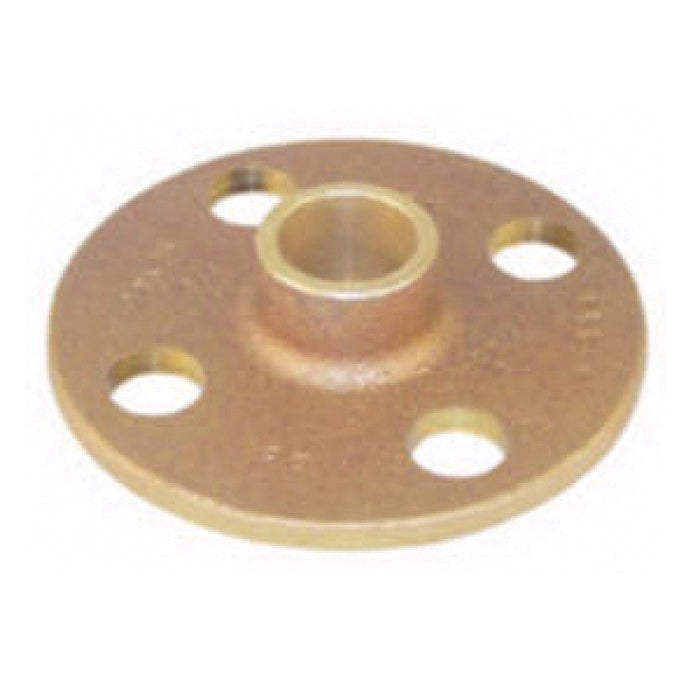

EPC 10051246 EPC 10051246 4741 Solder Companion Flange 3/4 in Nominal

Product Description

The EPC 10051246 is a solder companion flange designed for plumbing and mechanical applications. Manufactured by Elkhart Products Company, this flange is made from cast brass and features a connection type of C x C. It has a nominal size of three-fourths of an inch and operates under a pressure class of one hundred twenty-five pounds.

• Nominal size of three-fourths of an inch.
• Cast brass construction for durability.
• Designed for C x C connections.

Product Highlights

This flange is suitable for connecting pipes in various plumbing systems and is manufactured in the United States.

Product Information

Standard Information

• Brand: EPC
• Manufacturer: Elkhart Products Company

Technical Specifications

• MPN: 10051246
• Nominal Size: 3/4 in
• Material: Cast Brass
• Thickness: 0.19 in
• Bolt Hole Size: 0.62 in
• Bolt Circle Diameter: 2-3/4 in
• Number of Bolt Holes: 4
• Inside Diameter: 0.877 to 0.881 in
• Outside Diameter: 3.88 in
• Pressure Class: 125 lb
• Connection Type: C x C
• Series: 4741
