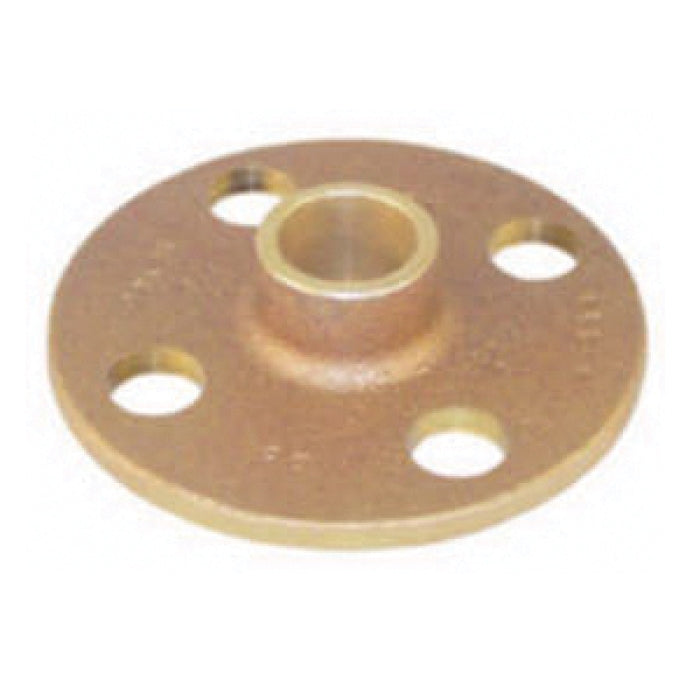

EPC 10051244 Companion Flange Solder 1/2 in Nominal 125 lb

Product Description

The EPC Companion Flange with MPN 10051244 is designed for plumbing and mechanical applications. This soldering flange is made from cast brass and features a connection type of C x C. It has a nominal size of one-half inch, making it compatible with standard plumbing systems.

• Nominal size of one-half inch
• Manufactured from cast brass
• Designed for use in plumbing and mechanical systems

Product Highlights

This flange is essential for connecting copper tubes safely and securely in various applications.

Product Information

Standard Information

• Brand: EPC
• Manufacturer: Elkhart Products Company

Technical Specifications

• Bolt Circle Diameter: 2.38 in
• Bolt Hole Size: 0.62 in
• Connection Type: C x C
• Dimensions: 1/2 in D
• Inside Diameter: 0.627 to 0.631 in
• Material: Cast Brass
• Nominal Size: 1/2 in
• Number of Bolt Holes: 4
• Outside Diameter: 3-1/2 in
• Pressure Class: 125 lb
• Series: 4741
• Thickness: 0.19 in
• Type: Solder
