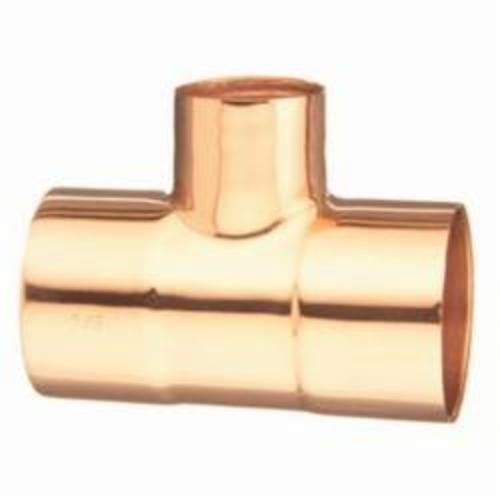

EPC 10033148 111-R Solder Reducing Tee 3 x 2-1/2 x 2 in

Product Description

The EPC Reducing Tee with MPN 10033148 is a copper solder joint fitting. This product is suitable for various applications, including industrial and residential plumbing systems. The fitting type is a tee with a nominal size of three inches by two and one-half inches by two inches. The product is designed for easy installation and features a C x C x C end style.

• Made from wrot copper
• Pressure rating of 315 psi
• Temperature rating from -20 to 100 degrees Fahrenheit

Product Highlights

This product provides strong and reliable connections in piping systems.

Product Information

Standard Information

• Manufacturer: EPC
• UPC: 68326433148

Technical Specifications

• Application: Industrial and Residential
• Dimensions: 3-1/8 x 2-5/8 x 2-1/8 inches OD
• Domestic/Import: Domestic
• End Style: C x C x C
• Fitting Type: Tee
• Material: Copper
• Nominal Size: 3 x 2-1/2 x 2 inches
• Pressure Rating: 315 psi
• Series: 111R Series
• Standards/Approvals: ASME/ANSI B16.22, ANSI 61/NSF Certified, MSS SP104
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Type: Solder
