Product Description

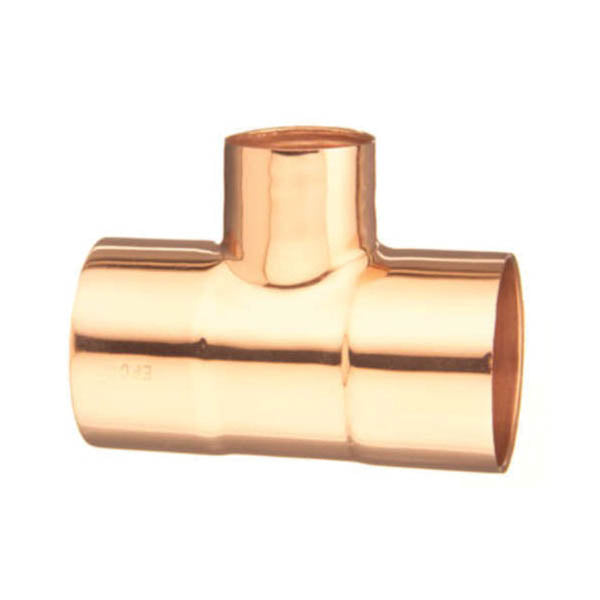

The EPC 10033006 is a solder reducing tee designed for connecting pipes in various applications. This fitting is made of wrot copper and is suitable for both industrial and residential use. It features a nominal size of two inches by one and one-quarter inches by three-quarters of an inch, and its end style is copper to copper to copper (C x C x C). The operating temperature range for this product is from negative twenty to one hundred degrees Fahrenheit.
- Wrot copper fittings designed to join ASTM B88 and ASTM B280 seamless copper tube
- Temperature rated from -20 to 100 degrees Fahrenheit
- Domestic production with minimal environmental impact
Product Highlights
This product offers reliable performance in various plumbing systems, ensuring secure and efficient connections.
Product Information
Standard Information
-
Brand: EPC
-
Manufacturer Part Number: 10033006
Technical Specifications
-
Application: Industrial and Residential
-
Dimensions: 2-1/8 X 1-3/8 X 7/8 in OD
-
Domestic/Import: Domestic
-
End Style: C x C x C
-
Fitting Type: Tee
-
Material: Wrot Copper
-
Nominal Size: 2 x 1-1/4 x 3/4 in
-
Series: 111-R
-
Standards/Approvals: ASME/ANSI B16.22|MSS SP104
-
Temperature Rating: -20 to 100 degrees Fahrenheit
-
Type: Solder
