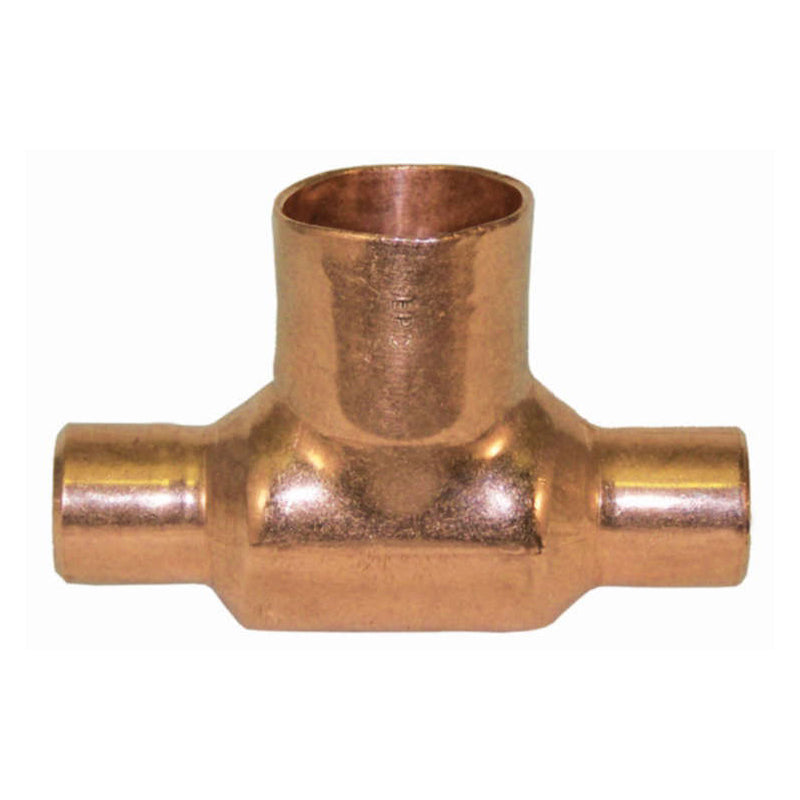

EPC 10032820 111-BH Solder Bullhead Tee 1 x 1 x 1-1/2 in C x C x C

Product Description

The EPC 111-BH Solder Bullhead Tee, MPN 10032820, is a copper fitting designed for both industrial and residential use. This tee fitting features a nominal size of one inch by one inch by one and a half inches, constructed with a copper material suitable for solder joints. The pressure rating for this product is four hundred ninety psi, with a temperature tolerance ranging from negative twenty to one hundred degrees Fahrenheit. This fitting is ideal for connecting three pipes at a right angle.

• Made from durable wrot copper
• Pressure rated for reliable service
• Suitable for a variety of plumbing applications

Product Highlights

The production of copper fittings prioritizes environmental safety and boasts a significant recycling component, with over fifty percent of the copper sourced from recycled materials.

Product Information

Standard Information

• Manufacturer: EPC
• UPC: 68326432820

Technical Specifications

• Manufacturer Part Number: 10032820
• Material: Copper
• Nominal Size: 1 x 1 x 1-1/2 in
• Fitting Type: Tee
• End Style: C x C x C
• Pressure Rating: 490 psi
• Temperature Rating: -20 to 100 deg F
• Series: 111-BH
• Standards/Approvals: ASME/ANSI B16.22, ANSI 61/NSF Certified, MSS SP104
