Product Description

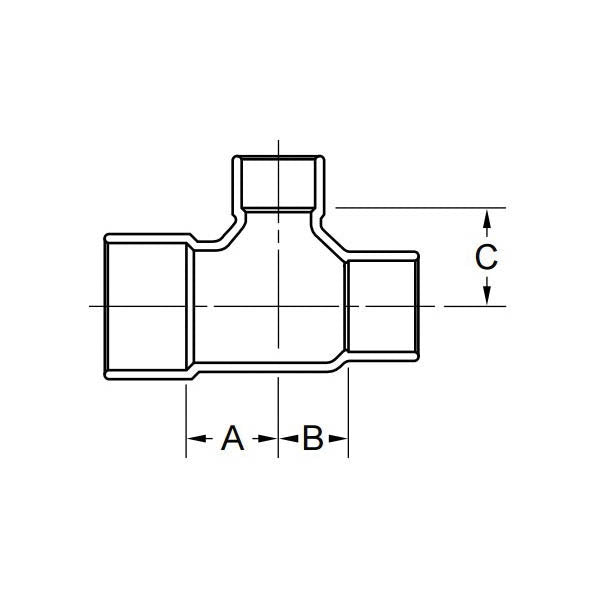

The EPC 10032640 is a solder tube tee fitting made from copper. It connects three copper pipes at a quarter-inch size with a configuration of copper to copper to copper. This fitting can handle a pressure of up to nine hundred ten psi and a temperature range from negative twenty to one hundred degrees Fahrenheit. The product is suitable for both industrial and residential applications.
- Constructed from recycled copper.
- Compatible with ASTM B88 and ASTM B280 standards.
- Temperature resistant from negative twenty to one hundred degrees Fahrenheit.
Product Highlights
This solder joint fitting is designed for efficient plumbing installations and repairs.
Product Information
Standard Information
-
Manufacturer: EPC
-
Part Number: 10032640
Technical Specifications
-
Fitting Type: Tee
-
Nominal Size: 1/4 in
-
Material: Copper
-
End Style: C x C x C
-
Pressure Rating: 910 psi
-
Temperature Rating: -20 to 100 deg F
-
Series: 111
-
Domestic/Import: Domestic
-
Standards/Approvals: ASME/ANSI B16.22 | MSS SP104
