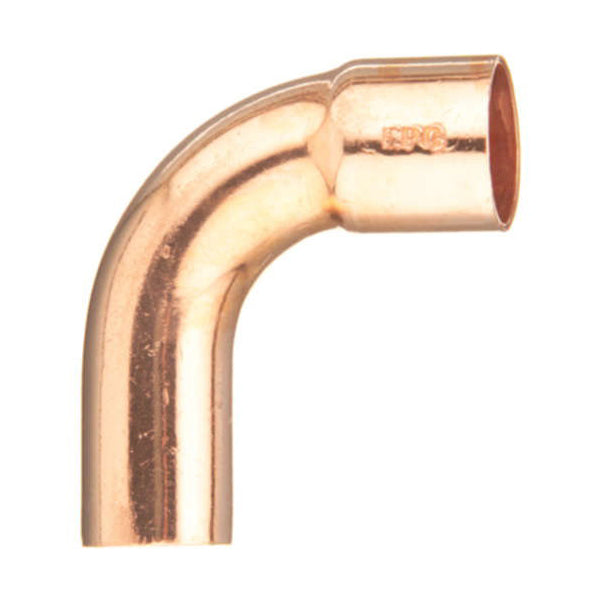

EPC 10031838 107L-2 Long Turn Street 90 deg Elbow, 1-1/4 in, C x Fitting, Copper

Product Description

The EPC 10031838 is a long turn street elbow fitting designed for standard plumbing applications. This specific model is a 90-degree elbow, made from copper and suitable for solder connections.

• Material: Copper
• Pressure rating: 490 psi
• Temperature rating: -20 to 100 degrees Fahrenheit

Product Highlights

This elbow fitting is ideal for both industrial and residential plumbing tasks. It allows for efficient flow direction changes in copper pipe systems.

Product Information

Standard Information

• Brand: EPC
• Part Number: 10031838

Technical Specifications

• Application: Industrial/Residential
• Dimensions: 1-3/8 inches
• Domestic/Import: Domestic
• End Style: C x Fitting
• Fitting Type: 90-degree Elbow
• Material: Copper
• Nominal Size: 1-1/4 inches
• Pressure Rating: 490 psi
• Series: 107L-2
• Standards/Approvals: ASME/ANSI B16.22, ANSI/NSF 61, MSS SP104
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Type: Long Turn
