Product Description

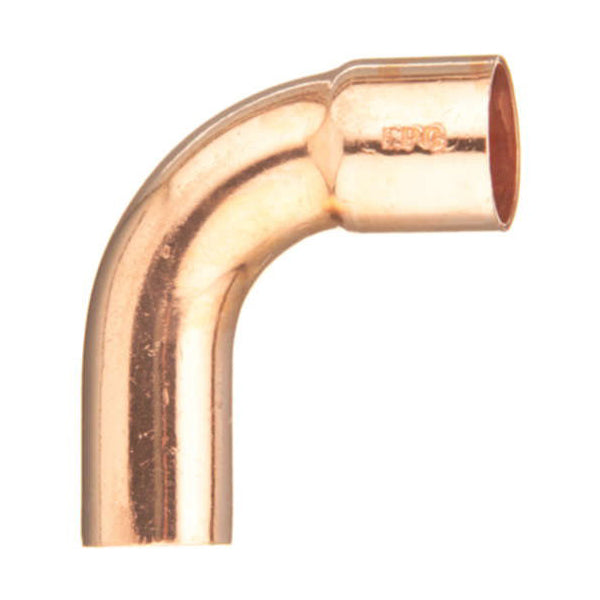

The EPC 10031810 is a 90-degree long turn street elbow fitting designed for various plumbing and piping applications. This copper fitting is made for residential and industrial uses. Its unique design allows for smooth transitions in plumbing systems.
- Rated for high pressure up to 630 psi
- Temperature tolerance ranging from -20 to 100 degrees Fahrenheit
- Constructed from high-quality copper for durability
Product Highlights
The elbow fitting is ideal for installations that require reliable connections and smooth flow.
Product Information
Standard Information
-
Brand: EPC
-
UPC: 68326431810
Technical Specifications
-
Application: Industrial/Residential
-
Dimensions: 3/4 in OD
-
Domestic/Import: Domestic
-
End Style: C x Fitting
-
Fitting Type: 90 deg Elbow
-
Material: Copper
-
Nominal Size: 5/8 in
-
Pressure Rating: 630 psi
-
Series: 107L-2
-
Standards/Approvals: ASME/ANSI B16.22|ANSI/NSF 61|MSS SP104
-
Temperature Rating: -20 to 100 degrees Fahrenheit
-
Type: Long Turn
