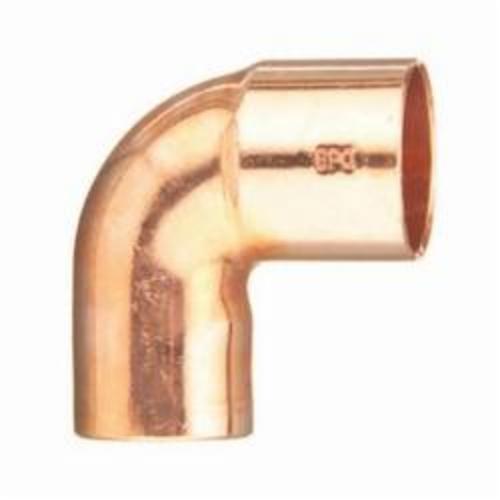

EPC 10031424 107C-2 Solder Close Ruff Street 90 deg Elbow, 2 in, Fitting x C

Product Description

EPC 10031424 is a solder close ruff street 90 degree elbow fitting made from copper. This fitting is designed for use in plumbing systems. The nominal size of this elbow is two inches, and it is suitable for both industrial and residential applications. The fitting operates under a pressure rating of three hundred sixty psi and can withstand temperatures ranging from negative twenty to one hundred degrees Fahrenheit.

• Designed for joining ASTM B88 and ASTM B280 seamless copper tube.
• Pressure rated up to 360 psi.
• Environmentally safer production process using recycled copper.

Product Highlights

This elbow fitting allows for smooth transitions in piping systems while ensuring reliable connections.

Product Information

Standard Information

• Brand: EPC
• Part Number: 10031424

Technical Specifications

• Type: Solder
• Domestic/Import: Domestic
• Fitting Type: 90 deg Elbow
• Material: Copper
• Nominal Size: 2 in
• Pressure Rating: 360 psi
• Temperature Rating: -20 to 100 deg F
• Series: 107C-2
• Standards/Approvals: ASME/ANSI B16.22, MSS SP104
