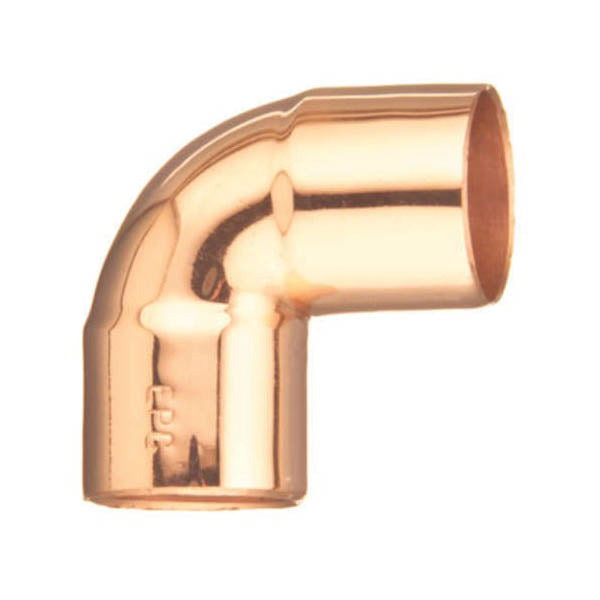

EPC 10031272 107C Solder Close Ruff Tube 90 deg Elbow 1/2 in C x C

Product Description

EPC offers the 10031272 107C Solder Close Ruff Tube 90 Degree Elbow. This copper fitting features a nominal size of one half inch and connections in both ends as copper to copper. Ideal for plumbing applications, this elbow fitting connects two pipes at a right angle.

• Designed for both industrial and residential use.
• Made of durable copper.
• Meets ASME/ANSI B16.22 and MSS SP104 standards.

Product Highlights

These solder joint fittings are eco-friendly, using recycled copper materials. They provide reliable connections in plumbing systems.

Product Information

Standard Information

• Manufacturer: EPC
• Part Number: 10031272

Technical Specifications

• Application: Industrial/Residential
• Domestic/Import: Domestic
• End Style: C x C
• Fitting Type: 90 deg Elbow
• Material: Copper
• Nominal Size: 1/2 in
• Pressure Rating: 720 psi
• Series: 107C
• Standards/Approvals: ASME/ANSI B16.22|MSS SP104
• Temperature Rating: -20 to 100 deg F
• Type: Solder
