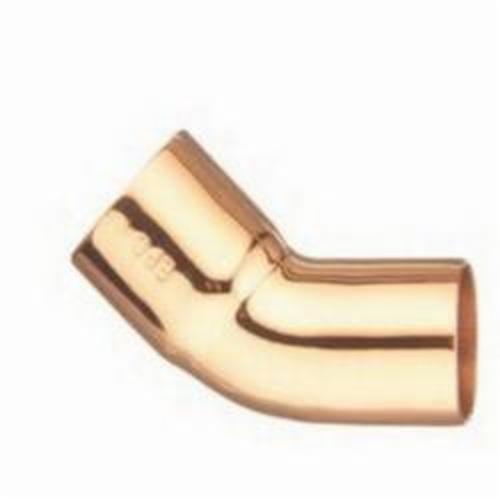

EPC 10031198 106-2 Solder Street 45 deg Elbow, 5/8 in, C x Fitting, Copper, Domestic

Product Description

The EPC 10031198 is a solder street elbow fitting designed for plumbing and HVAC applications. It features a nominal size of five-eighths of an inch and is suitable for both industrial and residential uses. The elbow is constructed from copper, ensuring durability and reliability in various environments.

• Wrot copper material
• Temperature range of negative twenty to one hundred degrees Fahrenheit
• Pressure rating up to six hundred thirty psi

Product Highlights

This fitting is engineered for effective water flow in pipe systems, providing a safe and secure connection for copper piping. It adheres to industry standards including ASME and ANSI specifications.

Product Information

Standard Information

• Brand: EPC
• Part Number: 10031198

Technical Specifications

• Application: Industrial/Residential
• Dimensions: 3/4 in OD
• Domestic/Import: Domestic
• End Style: C x Fitting
• Fitting Type: 45 deg Elbow
• Material: Copper
• Nominal Size: 5/8 in
• Pressure Rating: 630 psi
• Series: 106-2
• Standards/Approvals: ASME/ANSI B16.22, ANSI/NSF 61, MSS SP104
• Temperature Rating: -20 to 100 deg F
• Type: Solder
