EPC 10031172 106 Solder Tube 45 Deg Elbow 6 In C

Product Description

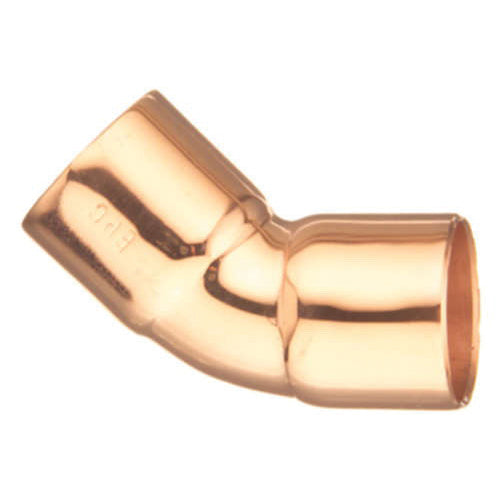

The EPC 10031172 is a copper solder 45 degree elbow fitting. It is designed for both industrial and residential applications. This fitting connects two pieces of tubing at a 45 degree angle. It has a nominal size of six inches and a maximum pressure rating of two hundred ninety psi. The elbow is suitable for temperatures ranging from minus twenty to one hundred degrees Fahrenheit.

• Wrot copper construction
• Temperature rating of -20 to 100 degrees Fahrenheit
• Domestic manufacturing for high quality assurance

Product Highlights

This fitting is part of the 106 series and is made from environmentally friendly recycled copper. It meets various industry standards.

Product Information

Standard Information

• Brand: EPC
• Manufacturer Part Number: 10031172

Technical Specifications

• Application: Industrial/Residential
• Dimensions: Six and one eighth inches OD
• Domestic/Import: Domestic
• End Style: C
• Fitting Type: 45 degree elbow
• Material: Copper
• Nominal Size: Six inches
• Pressure Rating: Two hundred ninety psi
• Series: 106
• Standards/Approvals: ASME/ANSI B16.22|ANSI/NSF 61|MSS SP104
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Type: Solder
