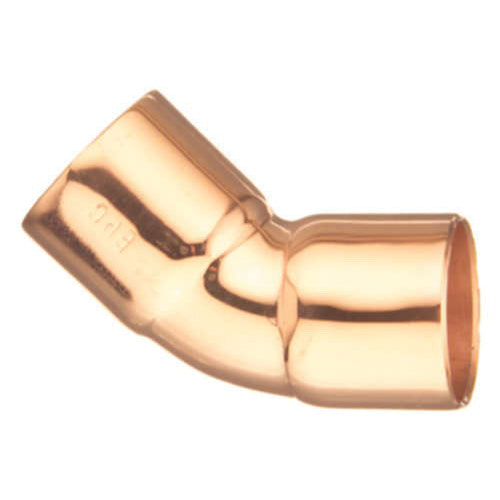

EPC 10031162 106 Solder Tube 45 Deg Elbow 3-1/2 in C

Product Description

The EPC 10031162 is a solder tube elbow fitting designed for connecting pipes at a 45-degree angle. This elbow fitting is made from copper and has a nominal size of three and a half inches. The product is suitable for both industrial and residential applications. It meets several industry standards for safety and quality.

• Wrot copper construction
• Pressure rating of two hundred ninety psi
• Temperature rating from negative twenty to one hundred degrees Fahrenheit

Product Highlights

The EPC 10031162 elbow is made from recycled copper material, ensuring environmentally safe manufacturing.

Product Information

Standard Information

• Brand: EPC
• Part Number: 10031162

Technical Specifications

• Fitting Type: 45 deg Elbow
• Nominal Size: 3-1/2 in
• Material: Copper
• Dimensions: 3-5/8 in OD
• Domestic/Import: Domestic
• End Style: C
• Series: 106
• Pressure Rating: 290 psi
• Temperature Rating: -20 to 100 deg F
• Standards/Approvals: ASME/ANSI B16.22 | ANSI/NSF 61 | MSS SP104
