EPC 10031134 106 Solder Tube 45 Deg Elbow 1-1/2 In C X C Copper Domestic

Product Description

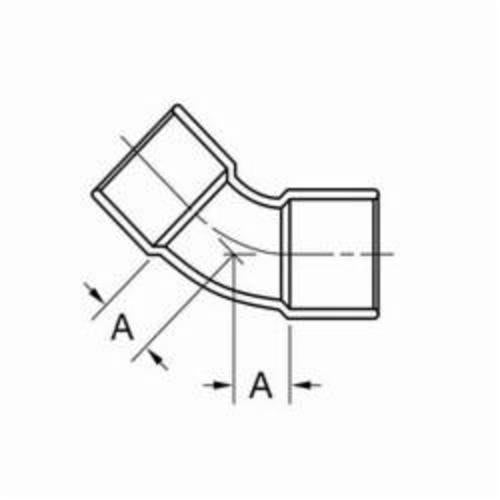

The EPC 10031134 is a 106 solder tube 45-degree elbow designed for copper piping connections. It features a nominal size of one and one-half inches in a copper-to-copper configuration. This fitting is suitable for various applications in both residential and industrial settings.

• Solder fitting for copper pipe
• Rated for a maximum pressure of 405 psi
• Temperature range of minus twenty to one hundred degrees Fahrenheit

Product Highlights

Use this elbow for efficient direction changes in your plumbing or HVAC systems.

Product Information

Standard Information

• Brand: EPC
• Type: Solder

Technical Specifications

• Application: Industrial/Residential
• Domestic/Import: Domestic
• End Style: C x C
• Fitting Type: 45 Deg Elbow
• Manufacturer Part Number: 10031134
• Material: Copper
• Nominal Size: 1-1/2 In
• Pressure Rating: 405 psi
• Series: 106
• Standards/Approvals: ASME/ANSI B16.22|MSS SP104
• Temperature Rating: -20 to 100 Deg F
