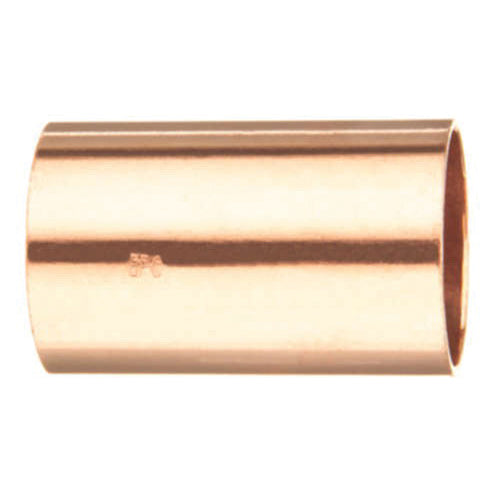

EPC 10030964 101 Solder Repair Coupling 1-1/2 in Nominal C x C

Product Description

The EPC Repair Coupling, with MPN 10030964, is a solder type fitting designed for various plumbing applications. This coupling is essential for connecting two copper pipes together in industrial and residential settings. The nominal size is one and a half inches and has a cup to cup connection style. This coupling is made of durable copper and is environmentally friendly, with a significant portion of the copper sourced from recycled materials.

• Wrot copper construction
• Meets pressure rating of four hundred five psi
• Temperature range of negative twenty to one hundred degrees Fahrenheit

Product Highlights

This product is ideal for both industrial and residential use, complies with ASME/ANSI standards, and is known for its durability and efficiency.

Product Information

Standard Information

• Brand: EPC
• MPN: 10030964

Technical Specifications

• Application: Industrial and Residential
• Dimensions: 1-5/8 inches OD
• Domestic/Import: Domestic
• End Style: C x C
• Fitting Type: Coupling
• Material: Copper
• Nominal Size: 1-1/2 inches
• Pressure Rating: 405 psi
• Series: 101
• Standards/Approvals: ASME/ANSI B16.22, ANSI 61/NSF Certified, MSS SP104
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Type: Solder
