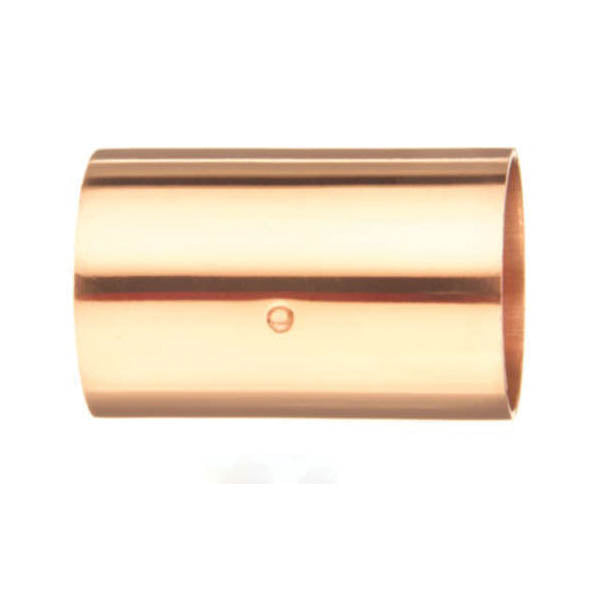

EPC 10030914 Solder Tube Coupling With Stop 1-1/2 in Nominal C x C Replacement MPN

Product Description

The EPC 10030914 is a solder tube coupling designed for connecting seamless copper tubes with a diameter of one and a half inches. This coupling features a copper, domestic construction suitable for various applications, both industrial and residential. The fitting has a C x C end style and can withstand pressure up to four hundred five psi. The operating temperature ranges from negative twenty to one hundred degrees Fahrenheit, making it versatile for different conditions.

• Constructed from high-quality copper
• Rated for a maximum pressure of four hundred five psi
• Ideal for soldering applications in industrial and residential settings

Product Highlights

This coupling provides a reliable connection for copper piping systems, ensuring durability and efficiency.

Product Information

Standard Information

• Application: Industrial and Residential
• Domestic/Import: Domestic

Technical Specifications

• End Style: C x C
• Fitting Type: Coupling
• Material: Copper
• Nominal Size: 1-1/2 inches
• Pressure Rating: 405 psi
• Series: 100
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Standards/Approvals: ASME/ANSI B16.22, MSS SP104
• Type: Solder
