EPC 10030556 119 Solder Flush Bushing, 1 x 3/4 in, C x FNPT, Copper, Domestic

Product Description

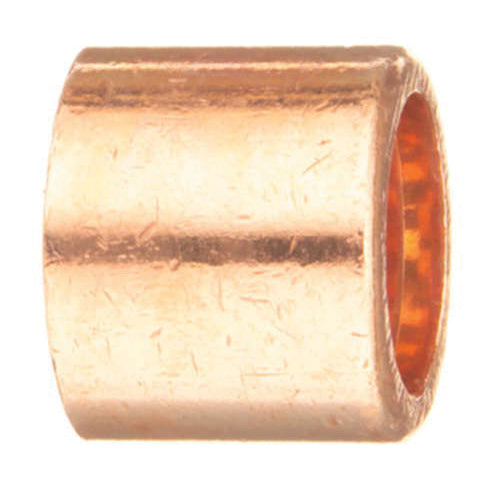

EPC offers the 10030556 solder flush bushing, a durable connection fitting made from copper. This fitting measures one inch by three-quarters of an inch and is designed for use in both industrial and residential applications. The connection type is C x FNPT. It is manufactured to meet high quality standards and is ideal for plumbing installations.

• Wrot copper construction
• Pressure rated at 490 psi
• Temperature range of -20 to 100 degrees Fahrenheit

Product Highlights

This bushing connects various piping setups effectively, ensuring a secure fit for reliable functionality.

Product Information

Standard Information

• Manufacturer: EPC
• Part Number: 10030556

Technical Specifications

• Fitting Type: Bushing
• Nominal Size: 1 x 3/4 in
• Application: Industrial and Residential
• End Style: C x FNPT
• Material: Copper
• Pressure Rating: 490 psi
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Series: 119
• Standards/Approvals: ASME/ANSI B16.22, ANSI 61/NSF Certified, MSS SP104
