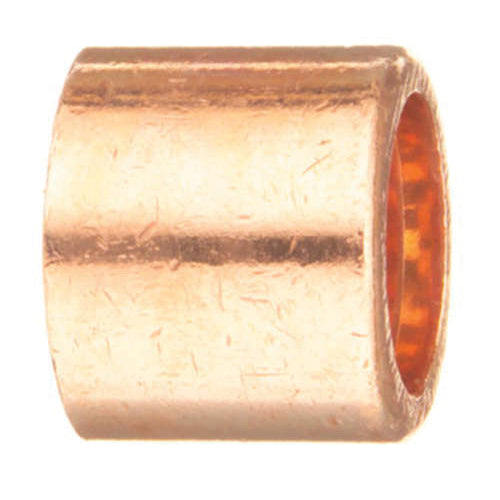

EPC 10030550 119 Solder Flush Bushing, 3/4 x 1/2 in, C x FNPT

Product Description

The EPC 119 Solder Flush Bushing with MPN 10030550 is a copper fitting designed for solder applications. It features a nominal size of three quarters inch by one half inch with a C x FNPT end style. This bushing is suitable for both industrial and residential use.

• Wrot copper construction
• Pressure rating of five hundred eighty psi
• Temperature rated from negative twenty to one hundred degrees Fahrenheit

Product Highlights

This product is made from high-quality copper that is environmentally friendly. The industry leader, EPC, utilizes recycled materials in the manufacturing of this fitting.

Product Information

Standard Information

• Manufacturer: EPC
• UPC: 68326430550

Technical Specifications

• Fitting Type: Bushing
• Nominal Size: 3/4 x 1/2 in
• End Style: C x FNPT
• Material: Copper
• Application: Industrial and Residential
• Pressure Rating: 580 psi
• Temperature Rating: -20 to 100 deg F
• Series: 119
• Standards/Approvals: ASME/ANSI B16.22, ANSI 61, NSF Certified, MSS SP104
