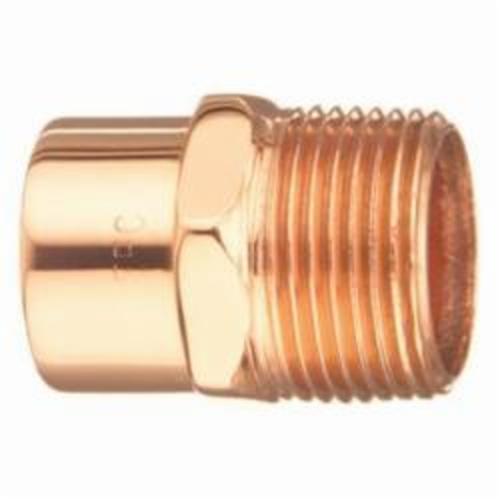

EPC 10030410 104 Solder Male Adapter 4 in C x MNPT

Product Description

EPC 10030410 is a solder male adapter designed for use in various applications. This adapter features a nominal size of four inches and is made from copper. It connects a copper pipe with a male National Pipe Thread (MNPT) fitting. The product supports a maximum pressure of 290 psi and works effectively in temperature ranges from negative twenty to one hundred degrees Fahrenheit.

• Wrot copper construction
• Connection type: C x MNPT
• Maximum pressure: 290 psi

Product Highlights

This adapter is essential for both industrial and residential plumbing tasks. It provides reliable connections for copper piping systems.

Product Information

Standard Information

• Brand: EPC
• MPN: 10030410

Technical Specifications

• Dimensions: 4-1/8 inches OD
• Material: Copper
• Fitting Type: Adapter
• Nominal Size: 4 inches
• Pressure Rating: 290 psi
• Temperature Rating: -20 to 100 degrees Fahrenheit
• End Style: C x MNPT
• Series: 104
• Standards/Approvals: ASME/ANSI B16.22, ANSI 61/NSF Certified, MSS SP104
