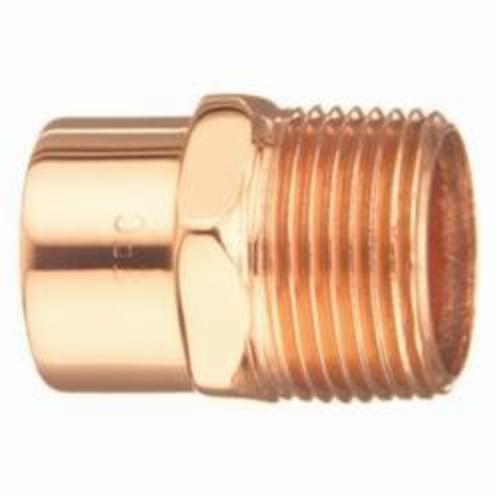

EPC 10030388 104 Solder Male Adapter 2-1/2 in C x MNPT

Product Description

EPC 10030388 is a solder male adapter made from copper. The nominal size is two and a half inches, designed for coupling copper pipes. It features a C x MNPT end style, making it suitable for various piping applications in both residential and industrial settings.

• Wrot copper construction
• Pressure rating of three hundred thirty-five psi
• Temperature rating from negative twenty to one hundred degrees Fahrenheit

Product Highlights

This fitting is made for soldering, ensuring a strong and secure connection.

Product Information

Standard Information

• Manufacturer: EPC
• Part Number: 10030388

Technical Specifications

• Application: Industrial and Residential
• Dimensions: 2-5/8 inches OD
• Domestic/Import: Domestic
• End Style: C x MNPT
• Fitting Type: Adapter
• Material: Copper
• Nominal Size: 2-1/2 inches
• Pressure Rating: 335 psi
• Series: 104
• Standards/Approvals: ASME/ANSI B16.22, ANSI 61/NSF Certified, MSS SP104
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Type: Solder
