Product Description

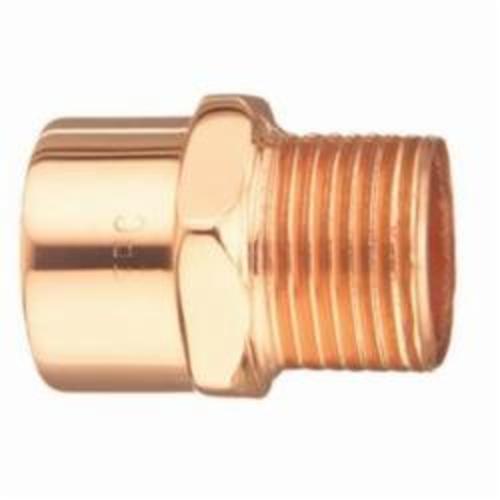

The EPC 10030350 is a solder reducing male adapter designed for various plumbing applications. It features a one inch by one and one-half inch size with a C x MNPT connection type. This copper fitting conforms to standards and is suitable for both industrial and residential use.
- Constructed from durable copper material
- Pressure rated up to 490 psi
- Temperature rating from negative twenty to one hundred degrees Fahrenheit
Product Highlights
This solder joint fitting is part of the 104-R series and is made in the United States. The product promotes sustainability through the use of recycled copper.
Product Information
Standard Information
-
Manufacturer: EPC
-
Part Number: 10030350
Technical Specifications
-
Application: Industrial and Residential
-
Domestic/Import: Domestic
-
End Style: C x MNPT
-
Fitting Type: Adapter
-
Material: Copper
-
Nominal Size: 1 x 1-1/2 in
-
Pressure Rating: 490 psi
-
Series: 104-R
-
Standards/Approvals: ASME/ANSI B16.22, ANSI 61/NSF Certified, MSS SP104
-
Temperature Rating: -20 to 100 deg F
-
Type: Solder
