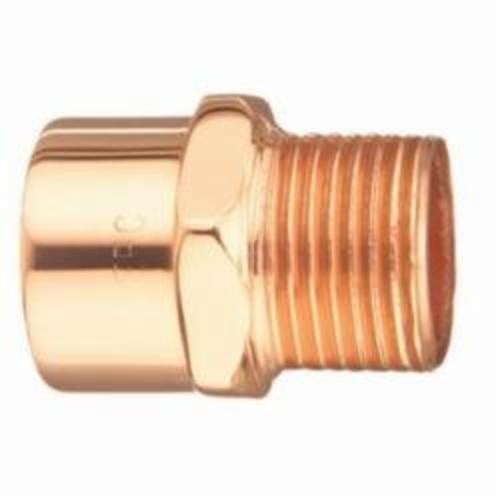

EPC 10030318 104-R Solder Reducing Male Adapter 1/2 x 3/8 in C x MNPT

Product Description

The EPC Reducing Male Adapter, MPN 10030318, provides reliable connections in various plumbing applications. This solder joint fitting is suitable for both industrial and residential use. It features a nominal size of one-half inch by three-eighths inch, designed with a copper material for durability. The product can withstand pressures up to 720 psi and operates effectively in temperatures ranging from negative twenty to one hundred degrees Fahrenheit.

• Wrot copper design
• Solder connection type
• Suitable for domestic applications

Product Highlights

This solder reducing male adapter is part of the 104-R series, ensuring compatibility with standard fittings.

Product Information

Standard Information

• Brand: EPC
• UPC: 68326430318

Technical Specifications

• Application: Industrial and Residential
• Dimensions: 5/8 x 3/8 inches
• End Style: C x MNPT
• Fitting Type: Adapter
• Material: Copper
• Nominal Size: 1/2 x 3/8 inches
• Pressure Rating: 720 psi
• Series: 104-R
• Standards: ASME/ANSI B16.22, ANSI 61/NSF Certified, MSS SP104
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Type: Solder
