Product Description

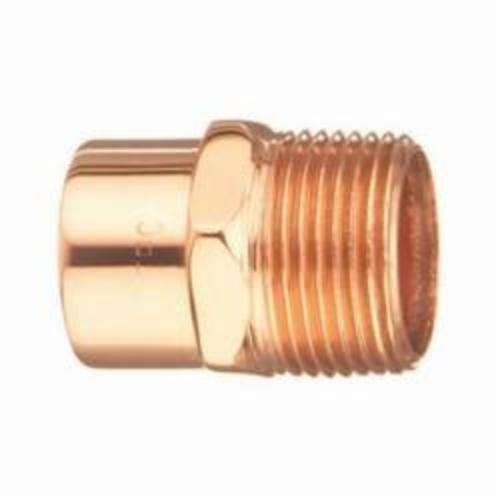

The EPC Male Adapter, MPN 10030310, is a solder fitting designed for connecting copper piping. This fitting is classified under the 104 series. It features a nominal size of one half inch and connects copper tubes utilizing a C x MNPT end style. The product operates at a pressure rating of 720 psi and has a temperature range from negative twenty to one hundred degrees Fahrenheit.
- Constructed from copper for durability
- Meets standards ASME/ANSI B16.22 and MSS SP104
- Recyclable material contributes to environmental sustainability
Product Highlights
This solder joint fitting is suitable for both industrial and residential applications. The production process for copper fittings is environmentally safe, with a significant portion of the copper sourced from recycled materials.
Product Information
Standard Information
-
Brand: EPC
-
Manufacturer Part Number: 10030310
Technical Specifications
-
Application: Industrial and Residential
-
Domestic/Import: Domestic
-
End Style: C x MNPT
-
Fitting Type: Adapter
-
Material: Copper
-
Nominal Size: 1/2 inch
-
Pressure Rating: 720 psi
-
Series: 104
-
Standards/Approvals: ASME/ANSI B16.22 | MSS SP104
-
Temperature Rating: -20 to 100 degrees Fahrenheit
-
Type: Solder
