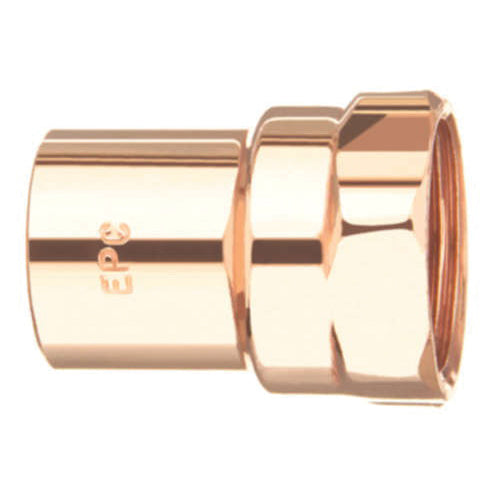

Product Description
The EPC 10030200 is a solder female adapter designed for various applications. This product features a nominal size of two and a half inches with a C x FNPT end style. It handles pressures up to three hundred thirty-five psi, making it suitable for both industrial and residential purposes.
- Material: Copper
- Temperature Rating: -20 to 100 degrees Fahrenheit
- Series: 103
Product Highlights
This solder fitting is made from recycled copper, emphasizing environmentally friendly manufacturing practices.
Product Information
Standard Information
-
Application: Industrial and Residential
-
Domestic/Import: Domestic
-
Manufacturer Part Number: 10030200
Technical Specifications
-
Fitting Type: Adapter
-
Nominal Size: 2-1/2 in
-
Pressure Rating: 335 psi
-
Dimensions: 2-5/8 x 2-1/2 in OD
-
Temperature Rating: -20 to 100 degrees Fahrenheit
-
Standards/Approvals: ASME/ANSI B16.22, ANSI 61/NSF Certified, MSS SP104
-
Type: Solder
