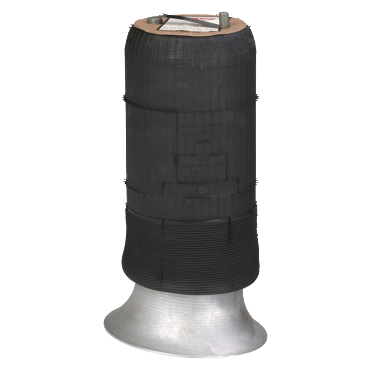

Enidine Inc. YI-1R12-256 Imperial Rolling Lobe Type Air Spring

Product Description

Enidine Inc. YI-1R12-256 Imperial Rolling Lobe Type Air Spring is designed for reliability and performance in various actuation and vibration isolation tasks. This air spring features fabric-reinforced materials and corrosion-resistant components for durability. It provides effective linear and angular motion, and its ability to reduce vibration makes it a suitable choice for many applications.

• Maximum inflation pressure of one hundred psi
• Suitable for temperature range from minus forty degrees Fahrenheit to one hundred sixty degrees Fahrenheit
• Manufactured by Goodyear for quality assurance

Product Highlights

This air spring is effective as both an actuator and an isolator, providing options for optimal movement and vibration damping.

Product Information

Standard Information

• Brand: Enidine Inc.
• Part Number: 102038529

Technical Specifications

• Compressed Height: 9.5 inches
• Force @ Maximum Stroke (80 psi): 3100 lbf
• Force @ 1 in Stroke: 7500 lbf
• Force @ 2 in Stroke: 7200 lbf
• Force @ 12 in Stroke: 7000 lbf
• Recommended Isolator Design Height [Max]: 20 inches
• Recommended Isolator Design Height [Min]: 16 inches
• Stroke Length [Max]: 19.600 inches
• Air Inlet Type: NPT
• Bellows Type: Rolling Lobe
• Bumpers: with Bumpers
