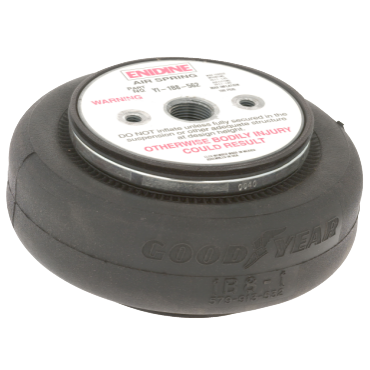

Enidine Inc. YI-1B5-510 | Imperial Single Convolute Bellows Type Air Spring

Product Description

The Enidine Inc. YI-1B5-510 is an Imperial Single Convolute Bellows Type Air Spring designed for actuation and vibration isolation. This air spring features durable construction with fabric-reinforced materials to ensure reliable performance. It is suitable for various applications including mechanical systems requiring linear or angular motion.

• Designed for actuation and vibration isolation.
• Constructed from fabric-reinforced Neoprene or Natural Rubber.
• Corrosion-protected end retainers enhance durability.

Product Highlights

Enidine air springs are engineered for effective vibration management, ensuring reduced wear and improved performance in machinery and equipment.

Product Information

Standard Information

• Brand: Enidine Inc.
• Part Number: YI-1B5-510

Technical Specifications

• Compressed Height: 1.8 inches
• Maximum Diameter: 6 inches
• Stroke Length: 3 inches
• Air Inlet Type: NPT
• Force at 1 inch Stroke: 1500 lbf
• Force at 2 inches Stroke: 1200 lbf
• Force at 3 inches Stroke: 520 lbf
• Temperature Range: -40 to 150 °F
