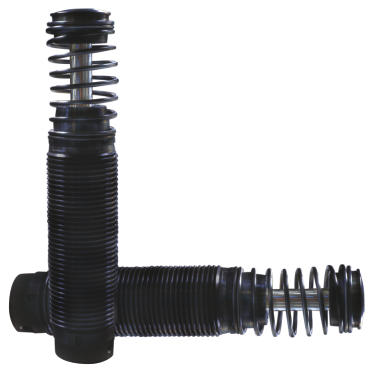

Enidine Inc. ECOOEM1.15MX2 Adjustable Series Hydraulic Shock Absorber

Product Description

The Enidine Inc. ECOOEM1.15MX2 is an adjustable series hydraulic shock absorber designed for flexible energy absorption applications. It caters to varying input parameters. This product allows for simple adjustments to damping force via a knob, making it adaptable for different conditions. It features a low-profile adjustment knob offered in metric configurations and accommodates stroke lengths from one inch to six inches for competitive interchange.

• Eco-friendly and RoHS compliant materials
• Biodegradable hydraulic oil, recyclable packaging
• Ease of installation with wrench flats and a jam nut included

Product Highlights

This shock absorber is ideal for pressure chambers up to one hundred psi. It has an integrated positive stop feature and meets ISO quality standards for reliable operation.

Product Information

Standard Information

• Brand: Enidine Inc.
• Part #: 115216854

Technical Specifications

• Stroke: 50 mm
• Inch/Metric: Metric
• Energy per Cycle: 424 N-m
• Operating Temperature [Min]: 15 °F
• Operating Temperature [Max]: 180 °F
• Thread Size: M33 x 1.5
• Weight: 1.561 LB
• Shock Absorber Type: Adjustable
• Series: ECO OEM Small Bore Series (ECO OEM 1.15 - 1.25)
