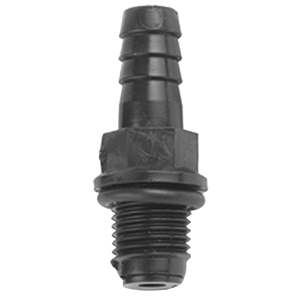

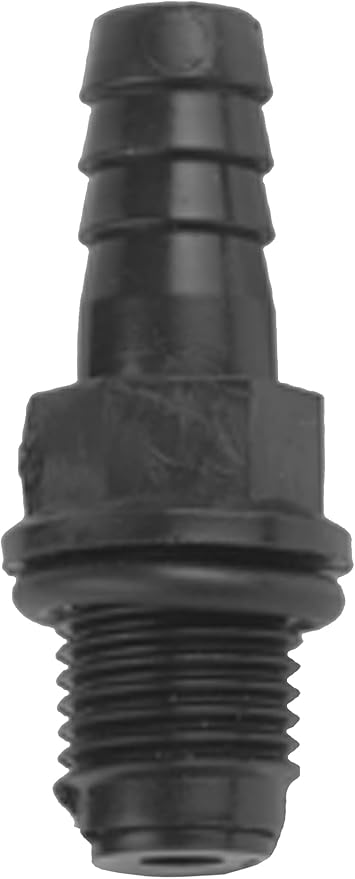

Engineered 599065 Little Giant CV-10 Check Valve

Product Description

The ENGINEERED 599065 Little Giant CV-10 check valve works with Little Giant VCL-14/24, VCMA, and VCC Series condensate pumps, preventing condensate from draining back. It fits 1/4-Inch MNPT to 3/8-Inch ID vinyl tubing and keeps water from flowing back to the pump, preventing rapid cycling. Extends the life of the motor.

• Designed for Little Giant condensate removal pumps: VCL-14/24, VCMA and VCC Series.
• Fittings: Works with pumps with a 1/4-inch FNPT pipe fitting and 3/8-inch vinyl tubing; the check valve is 1/4-inch MNPT on one end and .430-inch barbed on the other end.
• Use: Prevents water from flowing back to the pump and prevents the pump from rapid cycling, extending the life of the pump.

Product Highlights

The Little Giant CV-10 check valve is a replacement for VCMA Series, VCC Series, VCL-14 and VC-24 pumps.

Product Information

Standard Information

• Brand: ENGINEERED
• Manufacturer Part Number: 599065
• Country of Origin: USA

Technical Specifications

• Material: Vinyl
• Brand: Little Giant
• Exterior finish: Plastic
• Inlet connection size: 0.64 Centimeters
• Inlet connection type: National Pipe Tapered
• Outlet connection type: Barb
• Maximum operating pressure: 18 Pound per Square Inch
• Number of ports: 2
• Outlet connection size: 0.38 Inches
