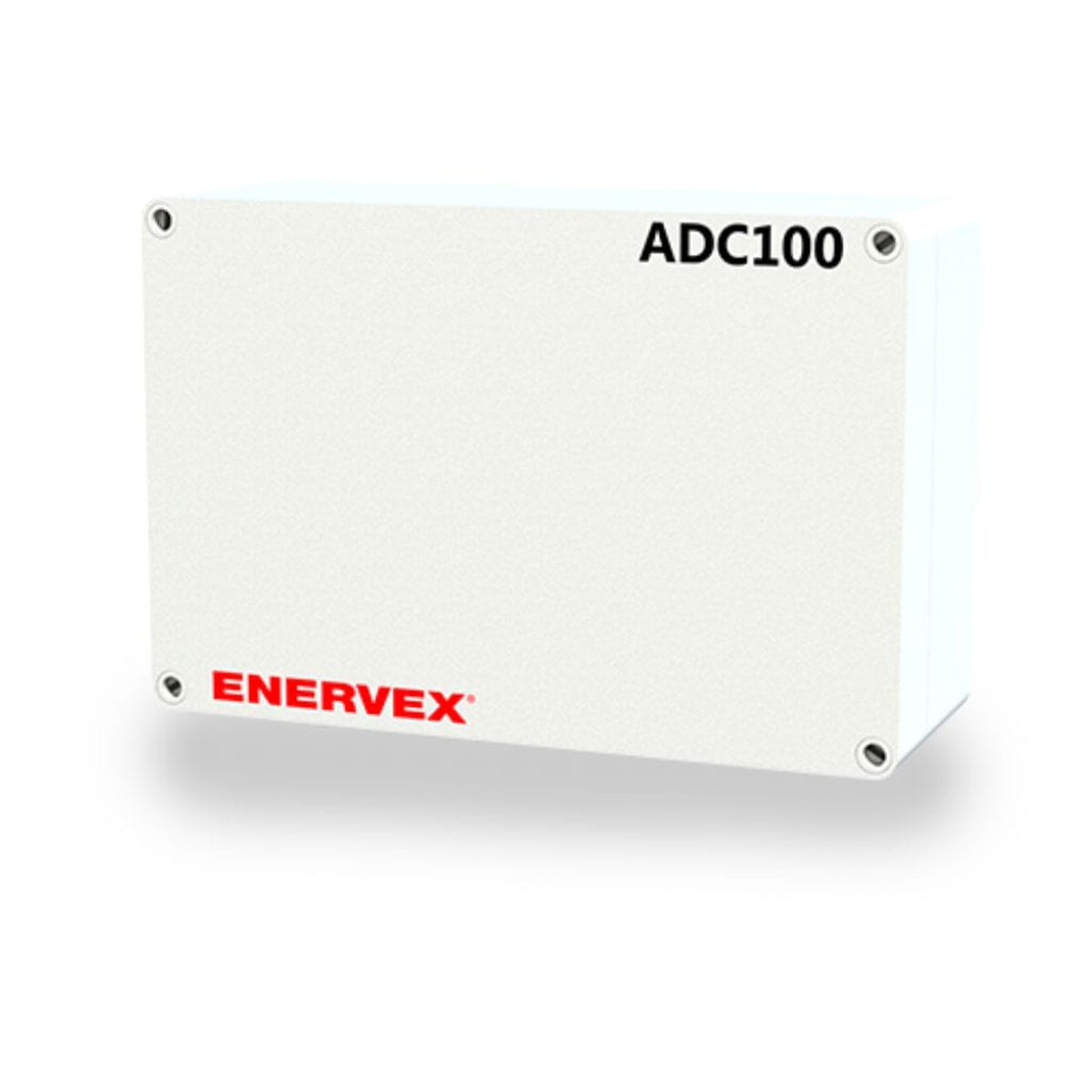

Enervex 302.0100.1200 adc100 Fan & Damper Control

Product Description

The Enervex 302.0100.1200 ADC100 comes with an external PDS and operates a chimney fan at a set speed to maintain proper mechanical draft. The control provides a 10-120 VAC signal to single phase fans, and a 0-10 VDC signal to control 3-phase fans by a variable frequency drive. An integrated damper relay allows a damper to be connected directly to the ADC100.

• Enclosure is made of NEMA 1-rated ABS plastic.
• Features 0-10 VAC control signal and 10-120 VAC for variable speed.
• Designed for indoor installations only.

Product Highlights

The Enervex ADC100 is for use with RS Fans and controls both 1x120V and 3x230V/460V fans (three-phase fans require an EDrive).

Product Information

Standard Information

• Brand: Enervex
• Manufacturer Part Number: 302.0100.1200

Technical Specifications

• Model Number: ADC100
• Item Number: 302.0100.1200
• Power Supply: 1x120VAC
• Amperage: 7.0
• Operating Temperature: -4 to 122 / -20 to 50
• Control signal (mA): Max. 10
• Control relay: Max. 120 VAC / 8A
• Output: 10-120
• Output – VDC: 0-10
• Post Purge Time: 0-3 minutes
• Alarm Delay Time: 15 seconds
• Listing Certification: *For use with Model RS listed to UL 378, Standard for Draft Equipment *UL508/UL 60947, Standard for Industrial Control Panels *CSA C22.2 No. 14-95, Standard for Industrial Control Equipment
• Dimensions (in / mm) A: 9.6 / 244
• Dimensions (in / mm) B: 6.3 / 160
• Dimensions (in / mm) C: 3.5 / 90
• Stack Probe H: 4.25 / 108
• Stack Probe I: 3.50 / 89
• Electrical phase: Single Phase
• Brand: Enervex
• Model: 302.0100.1200
• Control Signals: 0-10 VAC (for VFD) and 120/240 VAC (for direct connect
• Control Relays: (2) Max 120VAC/8A
• EMC Standard: Emission: EN50 081-1, Immunity: EN50 081-2
