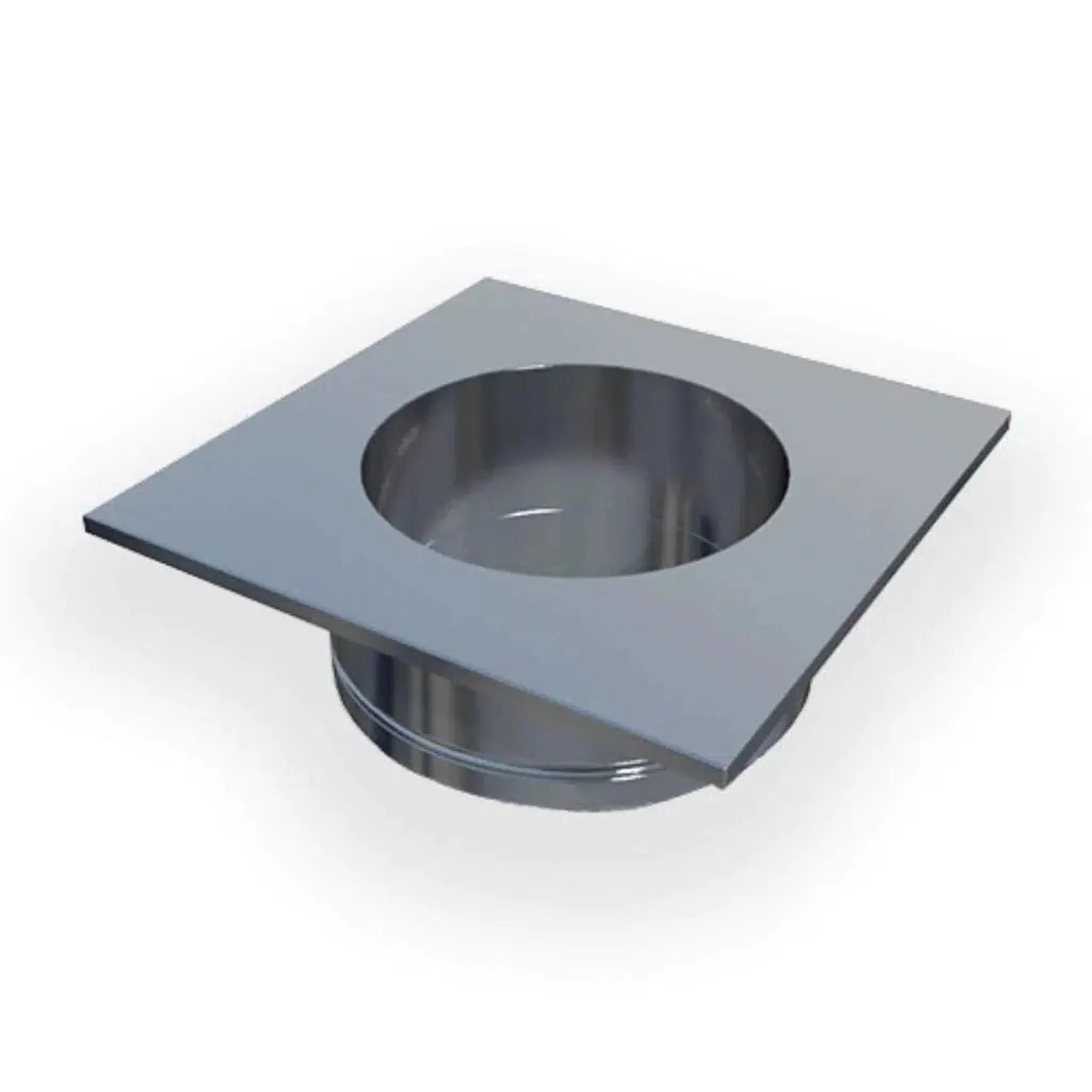

Enervex 222.0400.4012 ASCA Steel Chimney Adaptor for RS and RSHT (4 inches to 13 inches)

Product Description

Enervex 222.0400.4012 ASCA steel chimney adaptor provides support for installing an RS or RSHT chimney fan on a round, air-cooled steel chimney. The adaptor mounts at the chimney termination point and combines a square mounting plate to support the fan with a round collar that slides into the chimney for a tight fit. The collar outer diameter is 1/8" (3 mm) less than the chimney inner diameter; the 5" collar design eliminates the need for external fastening. Construction is stainless steel 316L and it fits standard chimney sizes from 4" to 13" (150 mm to 325 mm).

• Square mounting plate supports RS and RSHT chimney fans at the chimney termination point
• Round collar slides into chimney; collar OD is 1/8" (3 mm) less than chimney ID and includes a 5" collar to avoid external securing
• Stainless Steel 316L construction; fits standard sizes 4" to 13" (150 mm to 325 mm)

Product Highlights

Steel chimney adaptor for RS/RSHT fans with 5" collar, 1/8" collar tolerance, stainless steel 316L construction

Product Information

Standard Information

• Brand: ENERVEX
• Manufacturer Part Number: 222.0400.4012

Technical Specifications

• Brand: Enervex
• MPN: 222.0400.4012
• SKU: 222.0400.4012
• Product Type: Steel chimney adapter (square mounting plate with round collar)
• Compatibility: Supports RS or RSHT chimney fans on round, air-cooled steel chimneys
• Material: Stainless Steel 316L
• Standard Sizes: 4" to 13" (150 mm to 325 mm)
• Collar tolerance: Outer diameter 1/8" (3 mm) less than chimney inner diameter
• Collar feature: 5" collar length eliminates need for external fastening
• Mounting Location: Chimney termination point
• Adapter Description: Square mounting plate supports fan; round collar slides into chimney for tight fit
