Enervex 222.0400.3010 10 inches adapter for RS and RSHT 9 inches-14 inches air-cooled chimney fan (10 in)

Product Description

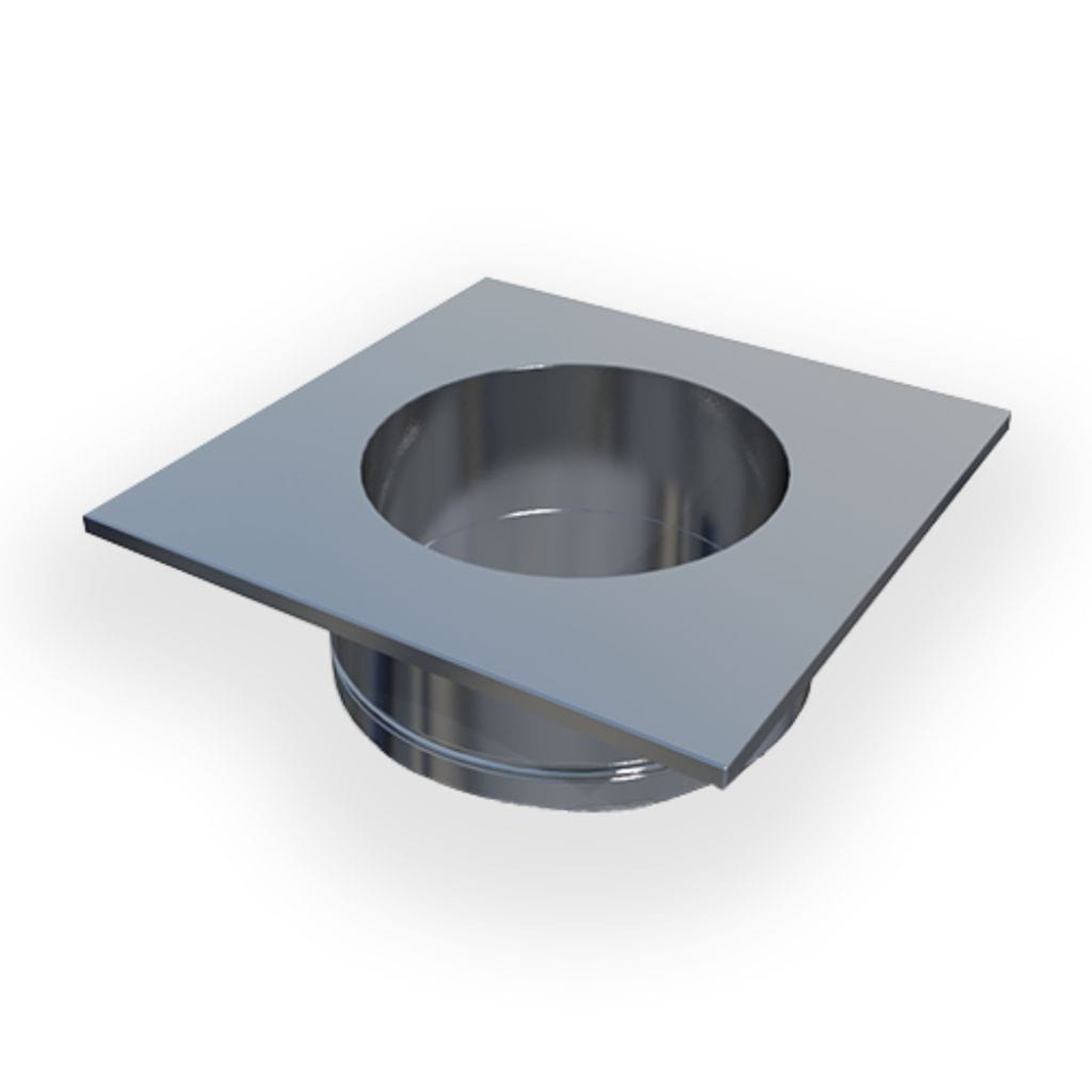

The Enervex 222.0400.3010 is a 10" ASCA steel chimney adapter that supports installation of RS and RSHT 9"-14" air-cooled chimney fans at the chimney termination point. It features a square mounting plate and a round collar that slides into the chimney; the collar outer diameter is 1/8" (3 mm) smaller than the chimney inner diameter. Constructed from stainless steel 316L, the adapter provides integrated support, allows venting of inner walls, and installs without tools.

• Square mounting plate with round collar mounts at the chimney termination point
• Collar outer diameter 1/8" (3 mm) smaller than chimney inner diameter for a tight fit
• Stainless steel 316L construction; installs without tools

Product Highlights

10 in stainless steel ASCA chimney adapter for RS and RSHT 9"-14" fans; square mounting plate; 1/8" undersized collar

Product Information

Standard Information

• Brand: ENERVEX
• Manufacturer Part Number: 222.0400.3010

Technical Specifications

• Brand: Enervex
• MPN: 222.0400.3010
• Series: ASCA
• Product Type: Steel Chimney Adapter
• Size: 10"
• Standard Sizes: 4" to 13" (150 mm to 325 mm)
• Available Sizes: 10 in, 11 in
• Material: Stainless Steel 316L
• Collar Size: 1/8" (3 mm) less than chimney inner diameter
• Compatible Fans: RS and RSHT 9"-14" air-cooled chimney fans
• Mounting Type: Square mounting plate with round collar; mounts at chimney termination point
• Application: Round air-cooled steel chimneys
• Features: Can be used on most round chimneys; integrated support allows venting of inner walls; easy to install without tools
