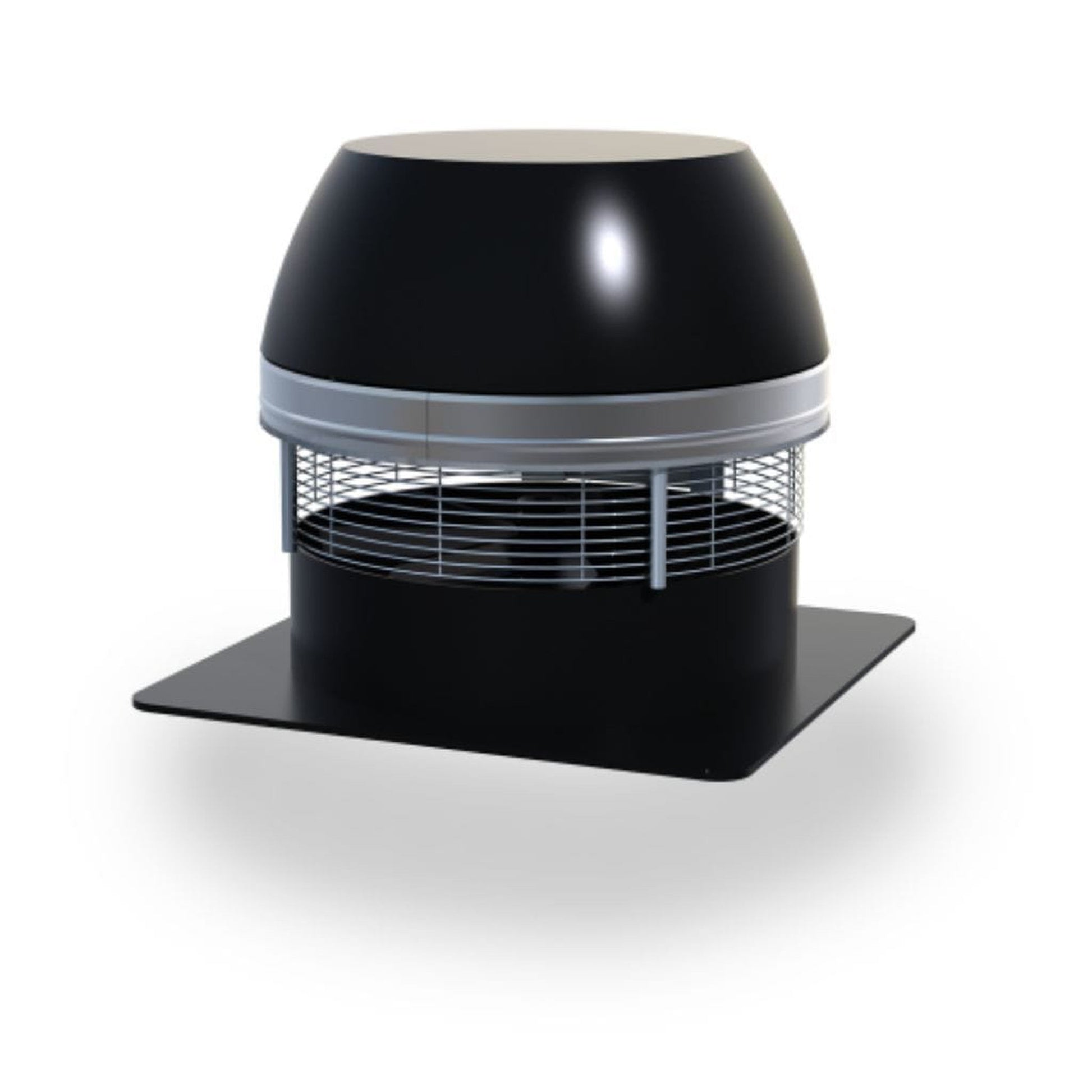

Enervex 102.0899.1200 RSHT 16 inches Axial Vane Chimney Fan

Product Description

The Enervex 102.0899.1200 RSHT fan is designed for efficient operation, low noise, low energy consumption, variable speed, and compact design. It is installed at the chimney termination point and can be mounted on masonry or metal chimneys, typically in a vertical position, but may be sidewall vented. The fan maintains negative pressure in the chimney system and discharges horizontally at a high velocity.

• Housing is made of 3/16" stainless steel.
• Finished with one coat of black paint for added corrosion resistance.
• Variable Speed.

Product Highlights

This chimney fan is ideal for solid-fuel-fired appliances, offering quiet operation and low operating costs. It includes a junction box, fiber mat, mounting brackets, bird screen, and a 5 Amp FSC fan speed control.

Product Information

Standard Information

• Brand: Enervex
• Manufacturer Part Number: 102.0899.1200
• Country of Origin: USA

Technical Specifications

• Item Number: 102.0899.1200
• Capacities: 0-1,480 CFM (0-2,515 m3/h)
• Material: Stainless Steel Housing and Axial Vane
• Discharge: Horizontal
• Fan Type: Axial Vane
• Motor Type: Totally enclosed, Variable speed, Class F
• Voltage: 1x20 V @ 60 Hz
• Amperage: 4.40
• RPM: 1580
• CFM at 0.0Ps: 1460
• Motor Output: 0.47 / 0.35 hp / kW
• Temperature Rating (Interm.): 1400ºF / 760ºC
• Temperature Rating (Cont.): 1000ºF / 538ºC
• Listings: UL 378 Standard for Draft Equipment UL 705 Standard for Power Ventilators CSA3-B255-M81 Standard for Mechanical Flue Gas Exhauster
• Dimensions A: 15.7 / 400 in / mm
• Dimensions B x B: 18.8 / 478 in / mm
• Dimensions C: 17.4 / 441 in / mm
• Dimensions D: 3.9 / 100 in / mm
• Dimensions E: 15.0 / 380 in
