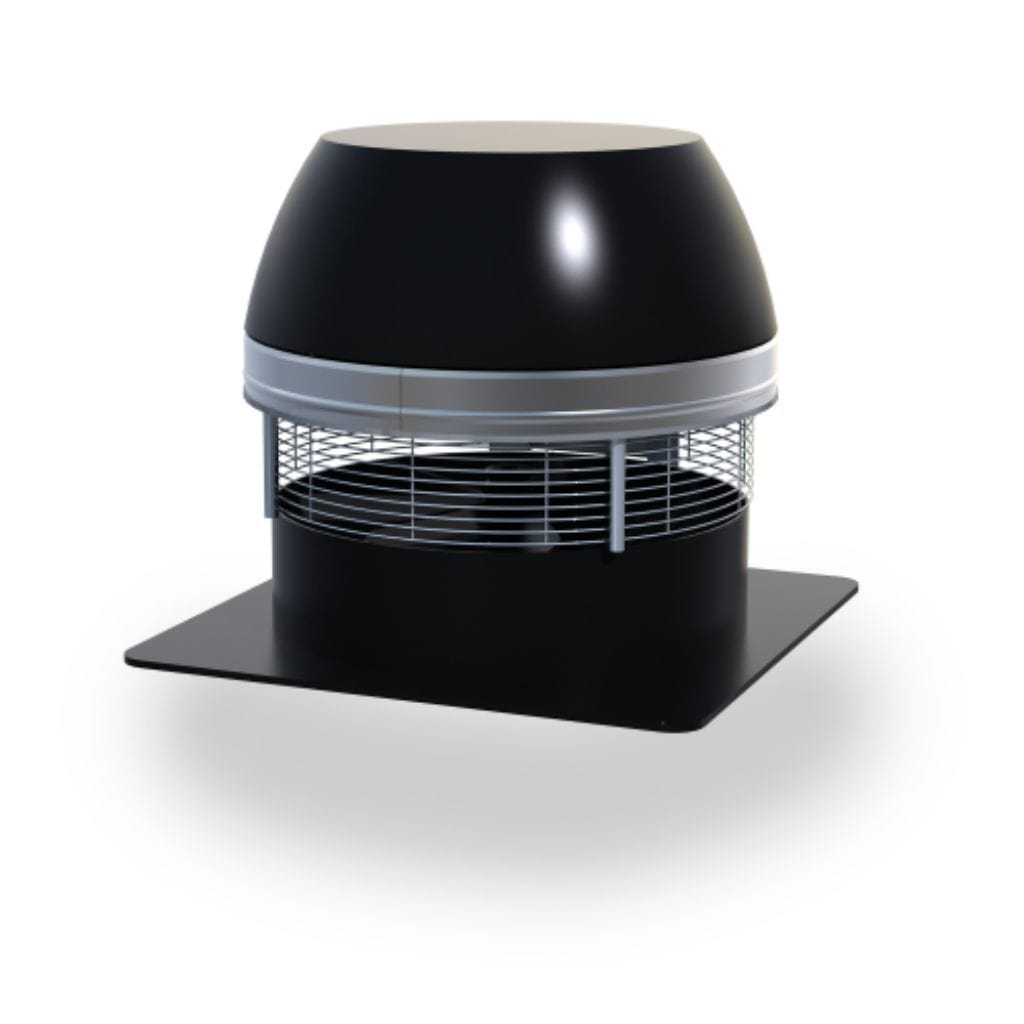

Enervex 102.0499.1200 Rsht 012 Chimney Fan - High-Temperature

Product Description

The Enervex 102.0499.1200 RSHT chimney fan is designed to exhaust smoke from chimney flues, commonly used in solid-fuel fireplaces, BBQs, pizza ovens, and stoves. Installation is clean and easy, with a compact design. The fan is designed for efficient operation, low noise, low energy consumption and variable speed. It can be mounted on masonry or metal chimneys.

• Quiet Operation
• Variable-speed motor
• Use with solid-fuel fired appliances

Product Highlights

This high-temperature exhaust fan is ideal for venting solid-fuel fireplaces, BBQs, pizza ovens and stoves.

Product Information

Standard Information

• Brand: Enervex
• Manufacturer Part Number: 102.0499.1200

Technical Specifications

• Capacities: 0-1,500 CFM (450-2,550 m3/h)
• Material: Stainless Steel Housing and Axial Vane
• Drive: Axial Vane
• Motor: Variable Speed, TEFC, Class H
• Max. Temp: Interm. 1400 (760 C), Contin. 1000 F (540 C)
• Listings: UL 378 Standard for Draft Equipment / UL 705 Standard for Power Ventilators / CSA3-B255-M81 Standard for Mechanical Flue Gas Exhauster
• Model: RSHT 012
• Discharge: Horizontal
• Fan Type: Axial Vane
• Motor Type: Totally enclosed, Variable speed, Class F
• Voltage: 1x120V @ 60 Hz
• Amperage: 1.33 Amps
• RPM: 1600
• CFM at 0.0Ps: 550
• Motor Output: 0.13 / 0.10 hp / kW
• Temperature Rating Interm.: 1400 F / 760 C
• Temperature Rating Cont.: 1000 F / 538 C
