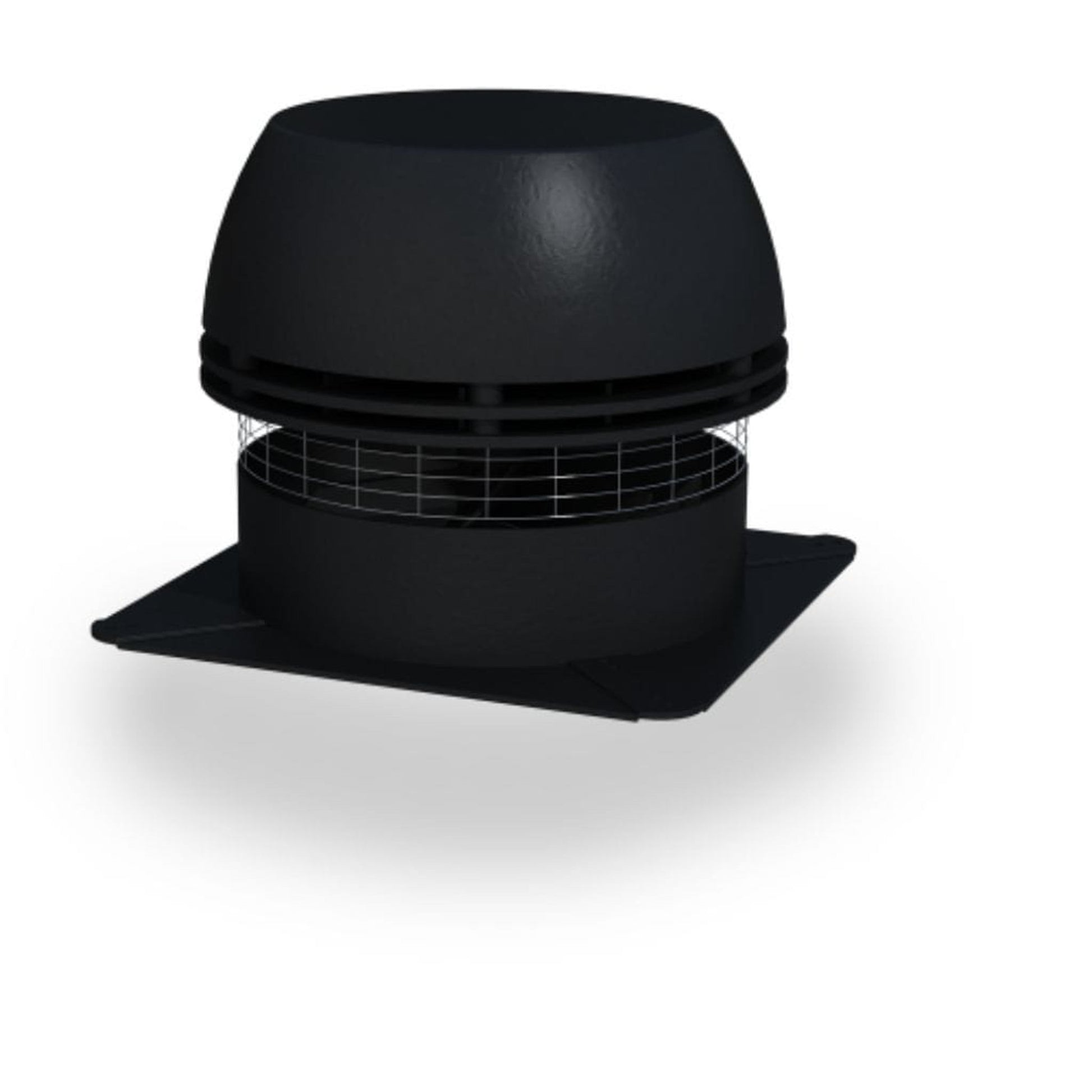

Enervex 101.0899.1200 RS 016 Chimney Exhaust Fan 1x120VAC

Product Description

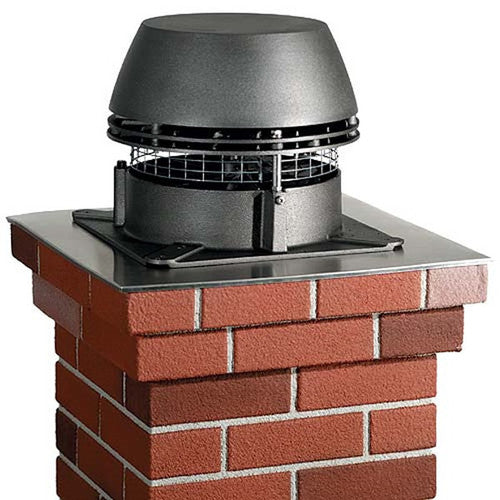

The Enervex 101.0899.1200 RS Chimney Fan mounts outside the chimney to exhaust smoke. Designed to disperse smoke horizontally, it's suitable for gas-fired fireplaces and stoves. Installation is straightforward, and its compact design is barely visible. Designed for efficient operation, low noise, low energy consumption, and variable speed, it mounts on masonry or metal chimneys and can be sidewall vented.

• Quiet Operation
• Variable-speed motor
• Use with gas-fired appliances

Product Highlights

This chimney fan ensures efficient smoke removal with a quiet, variable-speed motor, designed for gas-fired appliances and easy installation.

Product Information

Standard Information

• Brand: Enervex
• Manufacturer Part Number: 101.0899.1200

Technical Specifications

• Capacities: 0-1,800 CFM (0-3,000 m3/h)
• Material: Cast Aluminum Housing and Stainless Steel Axial Vane
• Drive: Axial Vane
• Motor: Variable Speed, TEFC, Class H
• Max. Temp: 575°F (300°C)
• Listings: UL 378 Standard for Draft Equipment / UL 705 Standard for Power Ventilators / CSA3-B255-M81 Standard for Mechanical Flue Gas Exhauster
• Use for: Gas appliances
• Item Number: 101.0899.1200
• Discharge: Horizontal
• Fan Type: Axial Vane
• Motor Type: Totally enclosed, Variable speed, Class H
• Voltage (VAC): 1x120V @ 60 Hz
• Amperage: 3.9
• RPM: 1600
• CFM (@0.0 Ps): 1950
• Motor Output (hp / kW): 1/3 / 0.25
• Temperature Rating (Interm.): 575°F / 300°C
• Temperature Rating (Cont.): 482°F / 250°C
