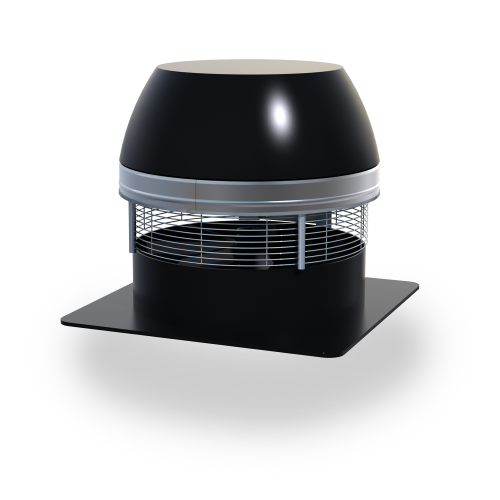

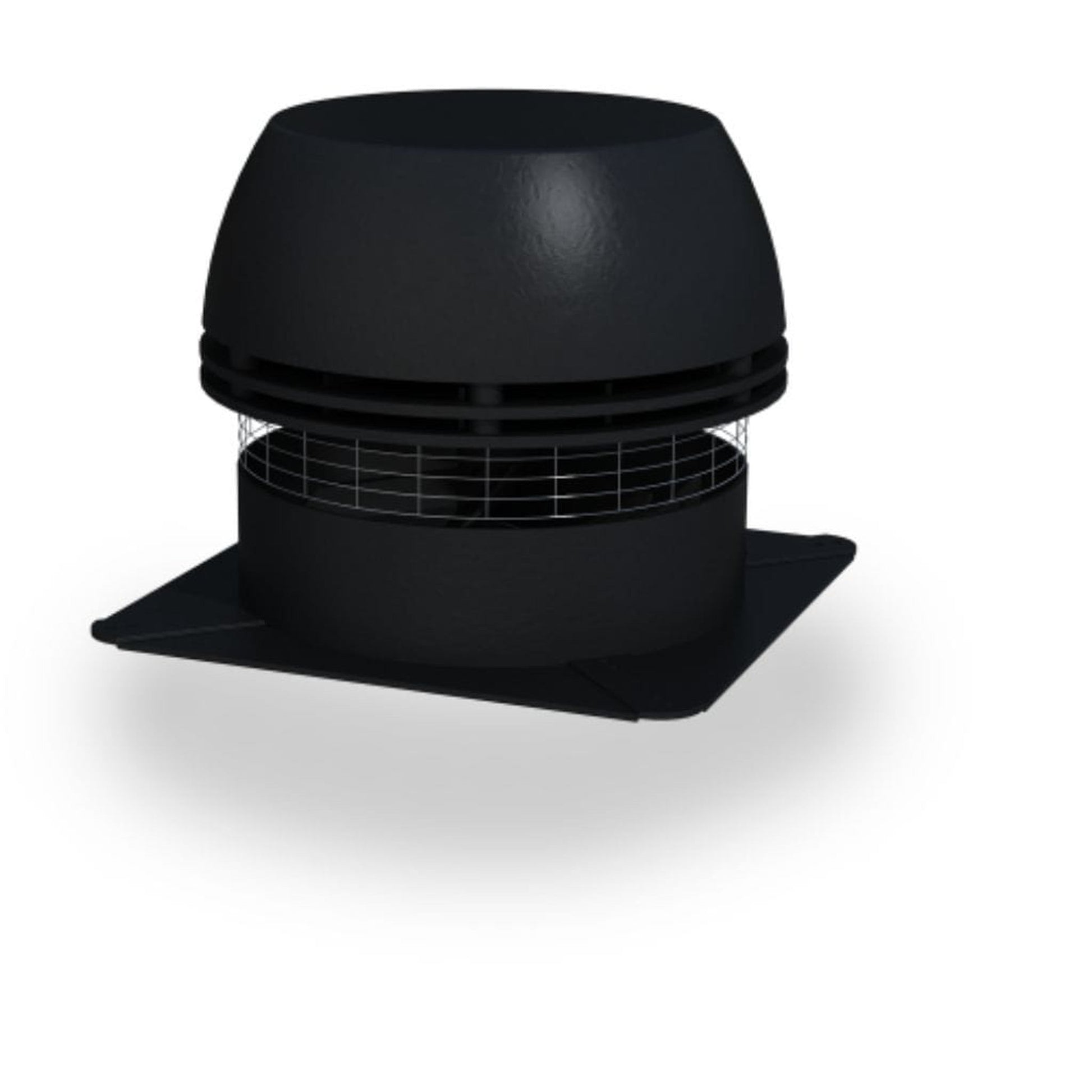

Enervex 101.0499.1200 RS 012 Chimney Exhaust Fan - Horizontal Discharge - 1x120VAC - 1.2A - 1600 RPM - Axial Vane

Product Description

The Enervex 101.0499.1200 RS Chimney Fan mounts outside the chimney to exhaust smoke from the chimney flue. Designed to disperse smoke horizontally, it's suitable for gas-fired fireplaces and stoves. Installation is clean and easy, with a compact design. It assures a negative pressure is maintained in the entire chimney or stack system.

• Quiet Operation
• Variable-speed motor
• Use with gas-fired appliances

Product Highlights

Efficient operation, low noise level, low energy consumption, variable speed and compact design are of utmost importance.

Product Information

Standard Information

• Brand: Enervex
• Manufacturer Part Number: 101.0499.1200

Technical Specifications

• Capacities: 0-1,800 CFM (0-3,000 m3/h)
• Material: Cast Aluminum Housing and Stainless Steel Axial Vane
• Drive: Axial Vane
• Motor: Variable Speed, TEFC, Class H
• Max. Temp: 575°F (300°C)
• Listings: UL 378 Standard for Draft Equipment / UL 705 Standard for Power Ventilators / CSA3-B255-M81 Standard for Mechanical Flue Gas Exhauster
• Item Number: 101.0499.1200
• Discharge: Horizontal
• Fan Type: Axial Vane
• Motor Type: Totally enclosed, Variable speed, Class H
• Voltage (VAC): 1x120V @ 60 Hz
• Amperage: 1.2 Amps
• RPM: 1600
• CFM (@0.0 Ps): 950
• Motor Output (hp / kW): 1/10 / 0.08
• Temperature Rating (Interm.): 575°F / 300°C
• Temperature Rating (Cont.): 482°F / 250°C
• CFM at 0.0Ps: 950
• Motor Output: 1/10 / 0.08 hp / kW
• Voltage: 1x120V @ 60 Hz
