Enervex 101.0299.1200 RS 009 Chimney Fan

Product Description

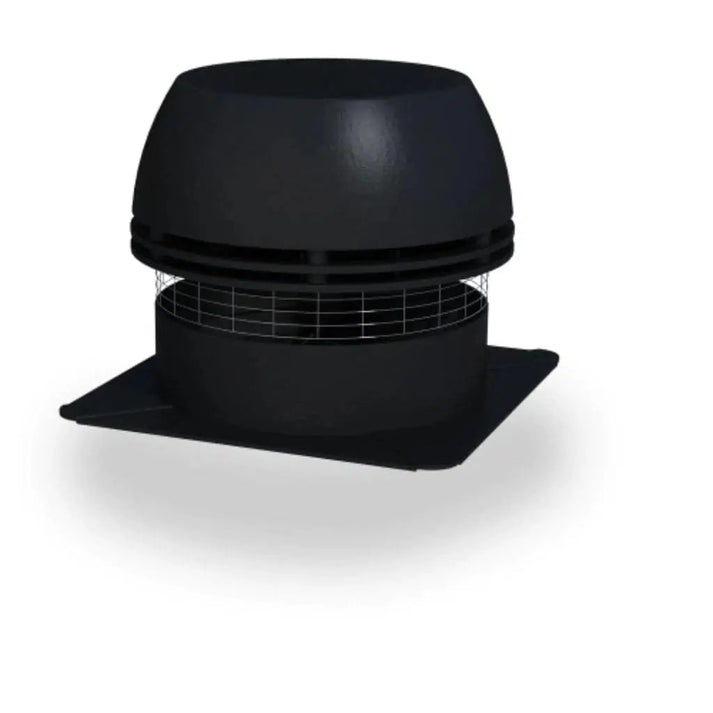

The Enervex RS 009 Chimney Fan, MPN 101.0299.1200, mounts outside the chimney to exhaust smoke. Designed to disperse smoke horizontally, it's suitable for gas-fired fireplaces and stoves. Installation is straightforward, and its compact design is barely visible. The fan is designed for efficient operation, low noise, low energy consumption, and variable speed.

• Quiet Operation
• Variable-speed motor
• Use with gas-fired appliances

Product Highlights

The RS Chimney Fan assures a negative pressure in the chimney system and discharges horizontally at a high velocity. It is easy to install and operate.

Product Information

Standard Information

• Brand: Enervex
• Manufacturer Part Number: 101.0299.1200

Technical Specifications

• Capacities: 0-1,800 CFM (0-3,000 m3/h)
• Material: Cast Aluminum Housing and Stainless Steel Axial Vane
• Drive: Axial Vane
• Motor: Variable Speed, TEFC, Class H
• Max. Temp: 575°F (300°C)
• Listings: UL 378 Standard for Draft Equipment / UL 705 Standard for Power Ventilators / CSA3-B255-M81 Standard for Mechanical Flue Gas Exhauster
• Standard Equipment: 2”x 4” or 4”x 4” junction box with cover and conduit, Fiber Mat and Mounting Brackets, Bird Screen, 5 Amp Fan Speed Control
• Approvals: CE Compliant, City of New York Department of Building, City of Los Angeles, The Commonwealth of Massachusetts (G1-1295-29)
• Fan Model: RS 009
• Part Number: 101.0299.1200
