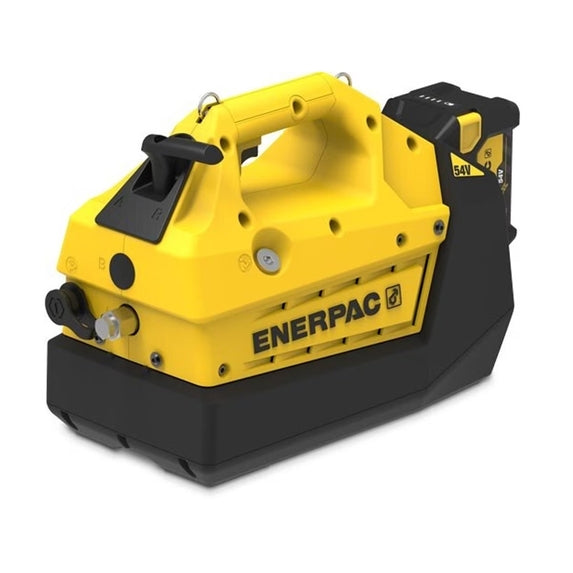

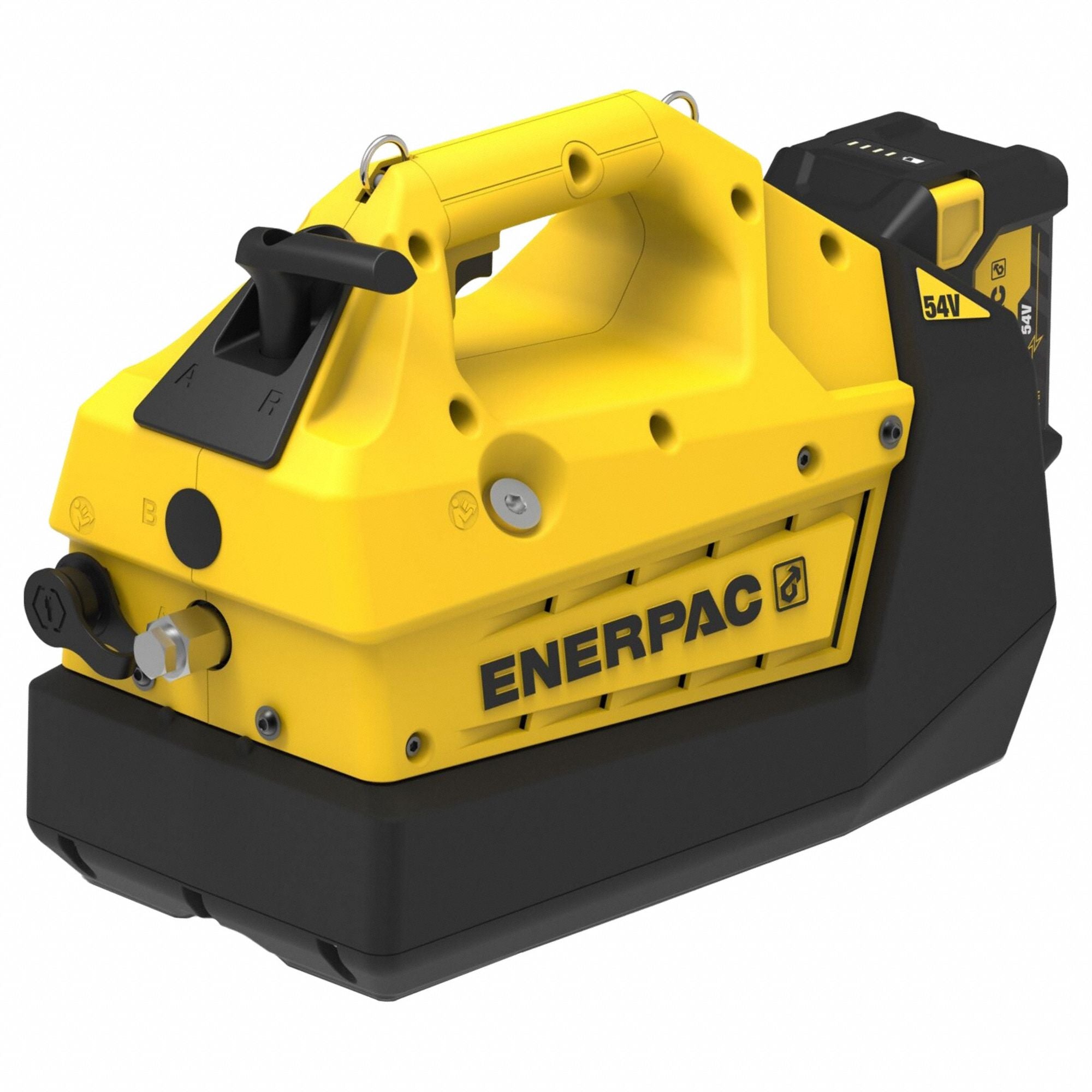

Enerpac XC2204MB 54V cordless pump 4L 3/2 manual valve 2 batteries 115V charger

Product Description

The Enerpac XC2204MB is a 54V cordless hydraulic pump with a 4.0 L (241 in3) bladder reservoir and a 3/2 manual valve. The pump includes two 54V batteries and a 115V North American charger, and uses a high-performance brushless motor to deliver flow for hydraulic cylinders and compatible tools up to 10,000 psi (700 bar). The unit provides variable speed control on manual valve models and is compatible with the Enerpac Connect App.

• 54V battery powered with two batteries and 115V AC charger included; cordless operation for portable hydraulic applications
• 4.0 L (241 in3) bladder reservoir, 3/2 (3-way, 2-position) manual valve with variable speed trigger, suitable for single-acting cylinders
• High-performance brushless motor; maximum operating pressure 10,000 psi (700 bar); flow example: 20 cu in/min at 10,000 psi

Product Highlights

Cordless 54V hydraulic pump, 4.0 L usable oil, 3/2 manual valve, includes batteries and 115V charger, 10,000 psi max pressure

Product Information

Standard Information

• Brand: ENERPAC
• Manufacturer Part Number: XC2204MB
• Country of Origin: United States

Technical Specifications

• Brand: Enerpac
• Manufacturer Part Number: XC2204MB
• Product Type: Cordless hydraulic pump
• Series: XC2
• Power Source: Battery (cordless)
• Battery Voltage: 54V DC
• Charger Input Voltage: 115V AC
• Usable Oil Capacity: 241 in3 (4.0 L)
• Reservoir Capacity: 4.0 L
• Reservoir Type: Bladder (rubber)
• Valve Type: 3/2 manual valve (3-way, 2-position) with variable speed trigger
• Maximum Operating Pressure: 10,000 psi (700 bar)
• Flow: 20 cu in/min at 10,000 psi
• Output Flow No Load: 2.60 l/min
• Output Flow Load: 0.33 l/min
• Motor Type: Brushless motor
• Motor Power: 0.94 hp (0.70 kW)
• Duty Cycle: Intermittent
• Weight: 29.8 lb
• Dimensions (L x W x H): 18.4 in x 8.8 in x 12.1 in
• Cylinder Compatibility: Single-acting cylinders
• Included Items: Two 54V batteries; 115V North American charger; pump (with oil)
• Compatible App: Enerpac Connect App
