Product Description

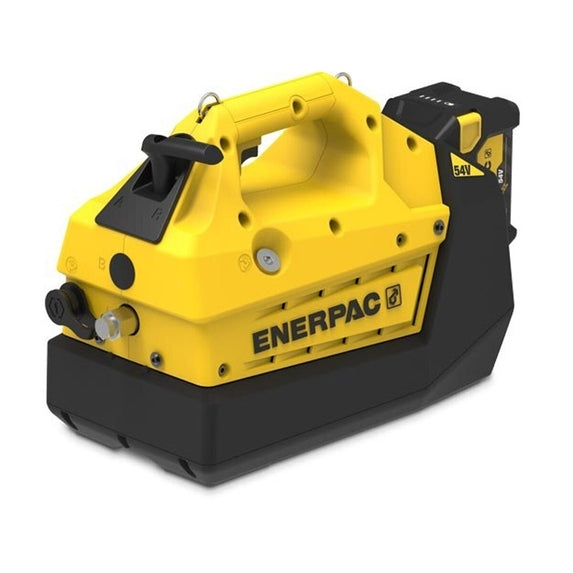

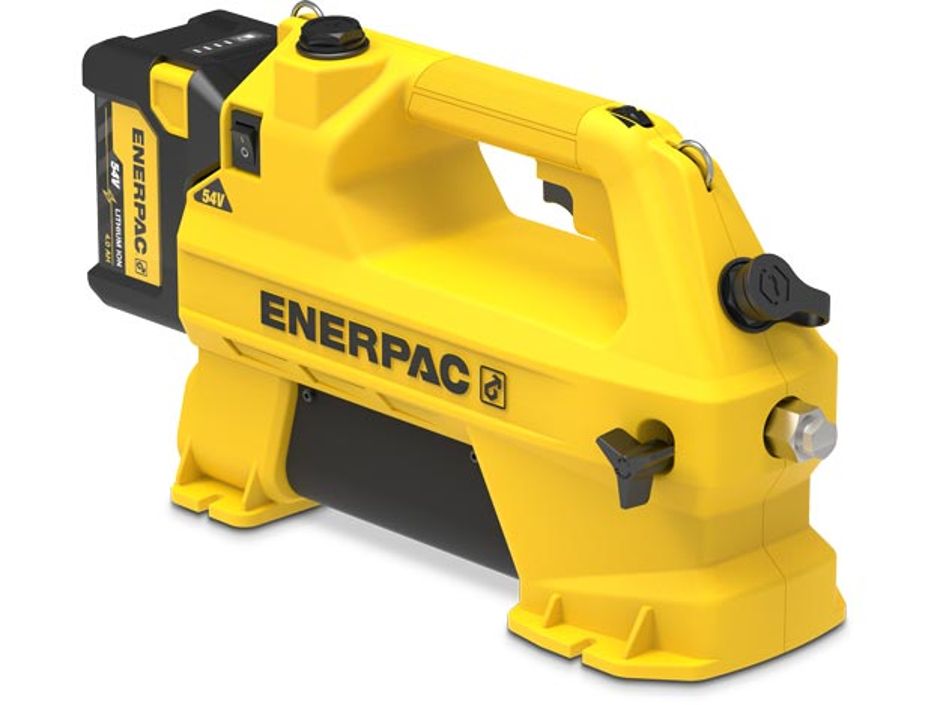

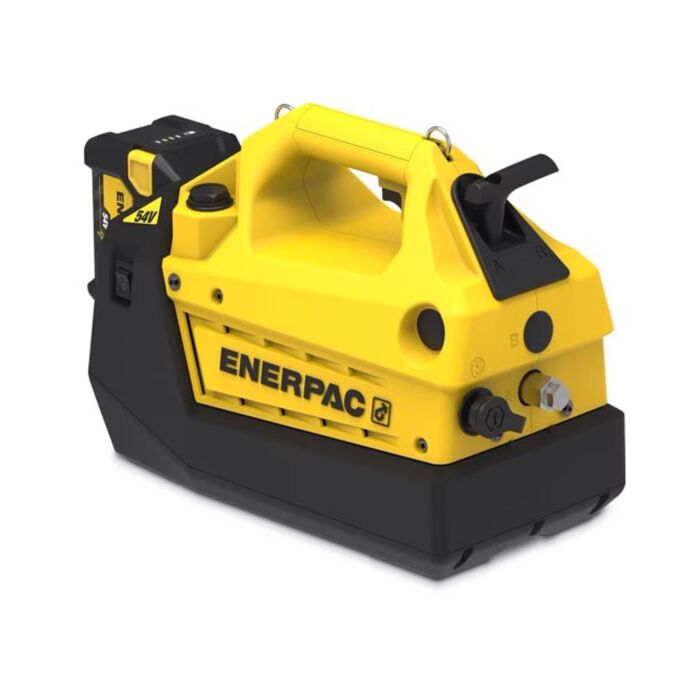

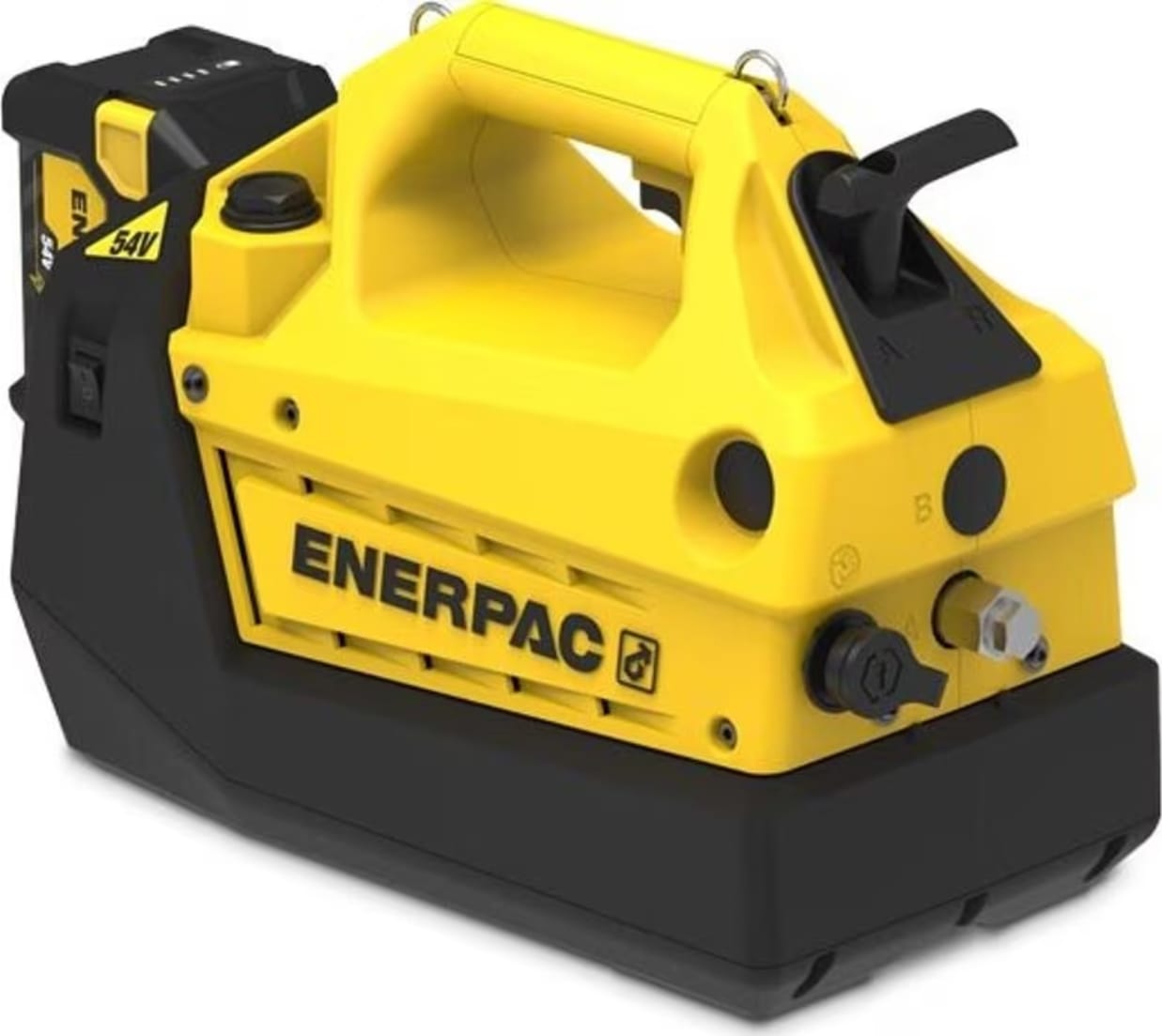

Enerpac XC2202MB is a 54 V cordless hydraulic pump kit featuring a brushless electric motor and a 3/2 manual valve for controlled cylinder or tool advance. The unit provides a rated hydraulic flow of 20 in3/min at 10,000 psi, a bladder reservoir (134 in3 total, 122 in3 usable), and includes two lithium-ion batteries with a 115 V North American charger for portable hydraulic power.
- Brushless motor (0.94 hp) delivering 20 in3/min at 10,000 psi and up to 160 in3/min no-load flow
- Bladder reservoir (134 in3 total, 122 in3 usable) with 3-way, 2-position manual valve and variable speed trigger
- Includes two 54 V lithium-ion batteries and 115 V North American charger; single-acting cylinder compatible
Product Highlights
Portable 54 V cordless hydraulic pump kit with brushless motor, bladder reservoir, 3/2 manual valve, and included batteries and charger.
Product Information
Standard Information
-
Brand: ENERPAC
-
Manufacturer Part Number: XC2202MB
-
Country of Origin: United States
Technical Specifications
-
Brand: Enerpac
-
MPN: XC2202MB
-
Series: XC2
-
Product Type: Cordless hydraulic pump kit
-
Power Source: Battery (54 V)
-
Voltage: 54 V
-
Motor Type: Brushless electric
-
Motor Power: 0.94 hp
-
Maximum Operating Pressure: 10,000 psi
-
Hydraulic Flow (rated): 20 in3/min at 10,000 psi
-
Hydraulic Flow (no-load): 160 in3/min
-
Reservoir Capacity: 134 in3
-
Usable Oil Capacity: 122 in3
-
Reservoir Type: Bladder reservoir
-
Valve Type: 3-way, 2-position manual (3/2 manual valve)
-
Variable Speed Trigger: Yes
-
Cylinder Compatibility: Single-acting
-
Batteries Included: 2
-
Battery Type: Lithium-Ion
-
Battery Capacity: 4 Ah
-
Charger Included: 115 V North American charger
-
Outlet Port: 3/8 in
-
Inlet Port: 3/8 in
-
UPC: 662005432226
-
App Compatibility: Enerpac Connect App
-
Enclosure Rating: IP20
-
Certifications: CE
