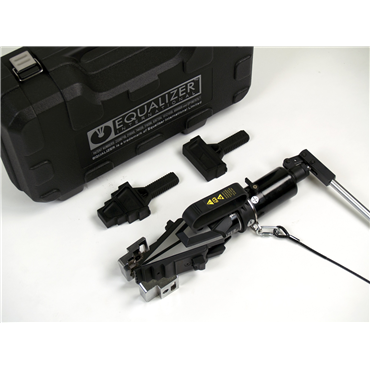

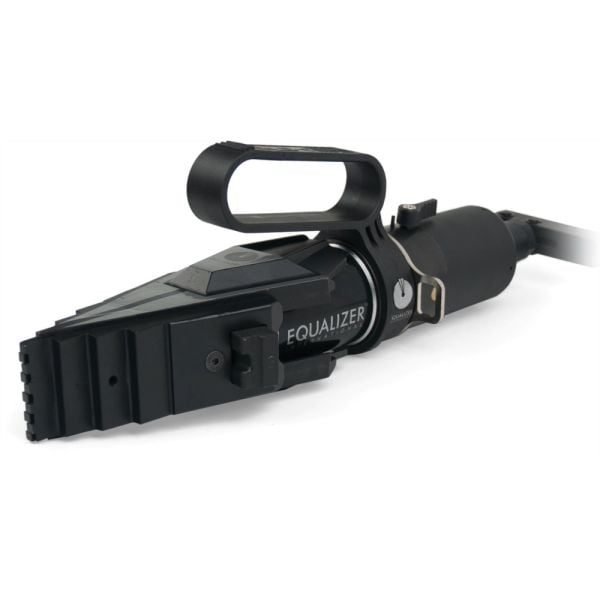

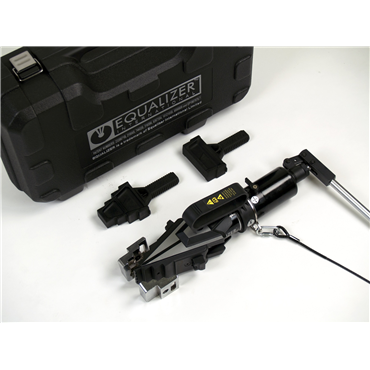

Enerpac SWI2025TISTDSPB Spreader Set 27 Ton (4.1 in Maximum Spread)

Product Description

The Enerpac SWI2025TISTDSPB is a SWi-series spreader set with a 27 ton (240 kN) capacity. It features a 2.36 in jaw width, a maximum spread of 4.1 in (103.5 mm), and a tip clearance of 0.24 in. The set is rated to a maximum operating pressure of 10,000 psi (700 bar) and is supplied as a standard SWi-series configuration not ATEX certified. Typical use cases include flange spreading, joint separation, and controlled mechanical separation in maintenance and construction environments.

• 27 ton (240 kN) capacity; maximum operating pressure 10,000 psi (700 bar).
• Maximum spread 4.1 in (103.5 mm) with 2.36 in jaw width and 0.24 in tip clearance.
• Standard SWi-series spreader set configuration; not ATEX certified; weight 30.4 lb.

Product Highlights

SWi-series hydraulic-capacity spreader set with 4.1 in maximum spread and 10,000 psi rating.

Product Information

Standard Information

• Brand: ENERPAC
• Manufacturer Part Number: SWI2025TISTDSPB
• Country of Origin: United States

Technical Specifications

• Brand: Enerpac
• MPN: SWI2025TISTDSPB
• Product Type: Spreader Set
• Series: SWi
• Capacity: 27 Ton (240 kN)
• Maximum Spread: 4.1 in (103.5 mm)
• Jaw Width: 2.36 in
• Tip Clearance: 0.24 in
• Maximum Operating Pressure: 10,000 psi (700 bar)
• Set Configuration: Standard
• Standard: Not ATEX certified
• Weight: 30.4 lb
• EAN/UPC: 662005411139
