Enerpac SP35SP Hydraulic Punch and Standard Die Set 115 VAC (35 Ton / 1 Pack / PUD-1100B)

Product Description

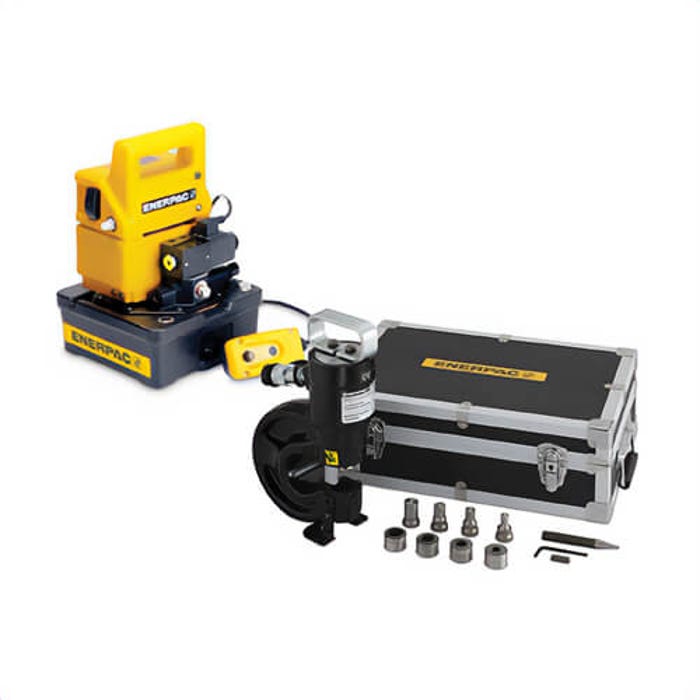

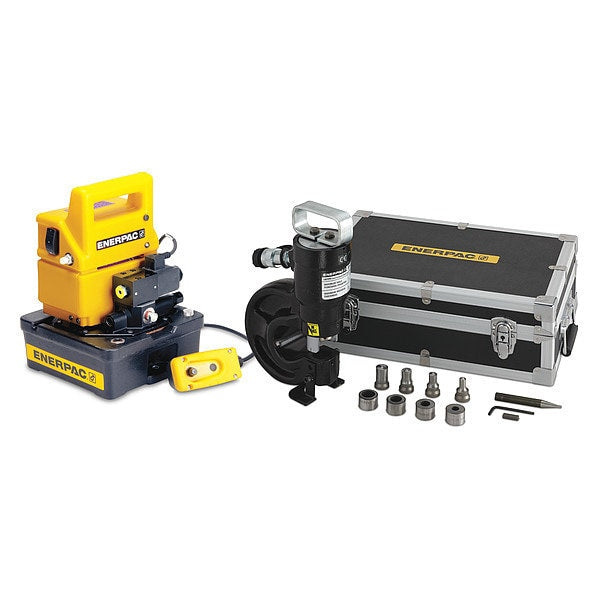

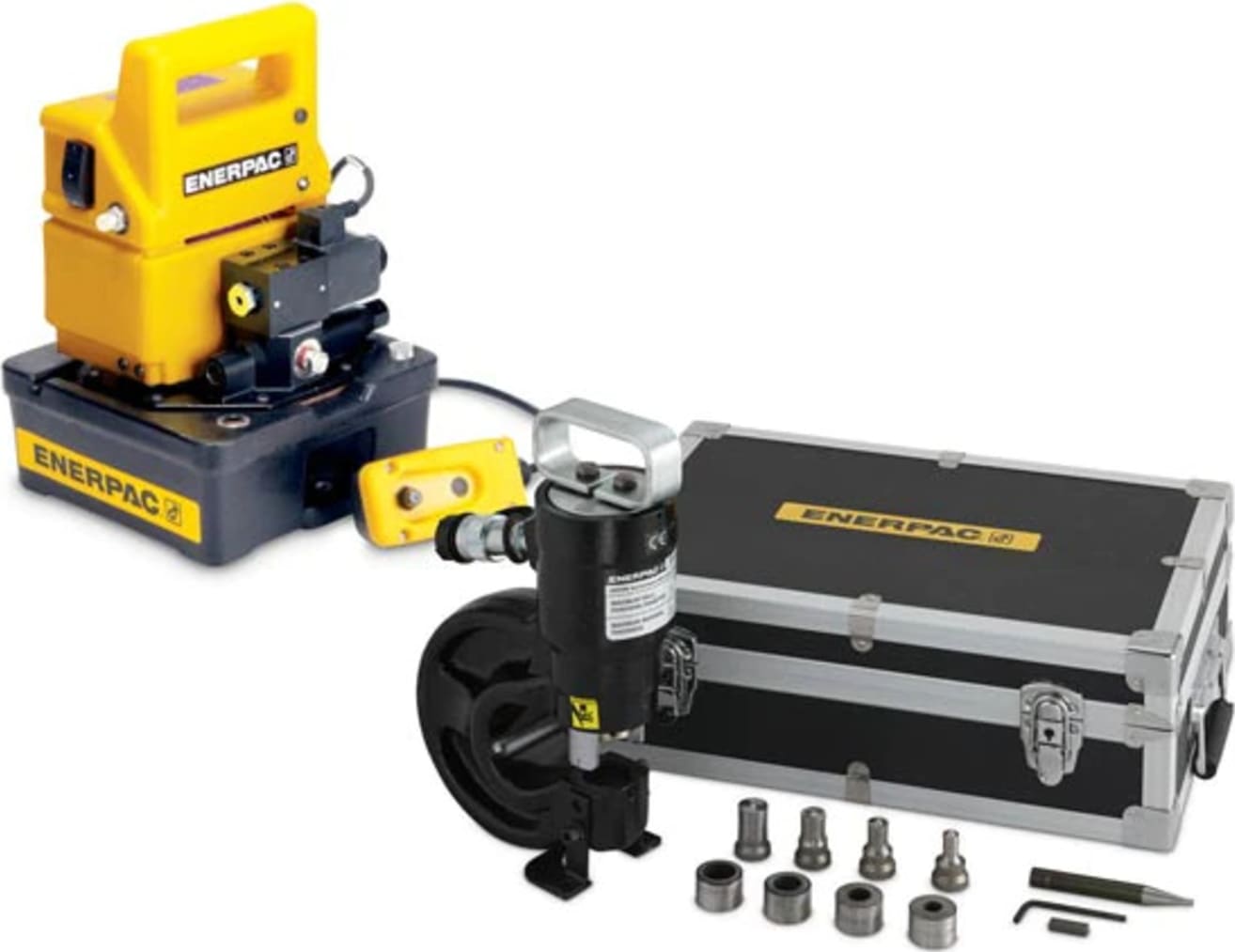

The Enerpac SP35SP is a 35-ton hydraulic knockout punch and standard die set supplied with a PUD-1100B pump. The kit includes SPD-438, SPD-563, SPD-688 and SPD-813 punch and die sets, HC-7206 hose, CR-400 coupler, and a durable steel carrying case. The single-acting, spring-return cylinder delivers up to 10,000 psi for punching round, oblong, and square holes sized 0.44 to 0.81 inch.

• 35-ton capacity with a maximum operating pressure of 10,000 psi; single-acting, spring-return cylinder
• Includes PUD-1100B pump, HC-7206 hose, CR-400 coupler, and punch/die sets (SPD-438, SPD-563, SPD-688, SPD-813)
• Punch sizes: 0.44 in, 0.56 in, 0.69 in, 0.81 in; supports bolt sizes 3/8 in, 1/2 in, 5/8 in, 3/4 in; packed in steel case

Product Highlights

35 ton capacity; 10,000 psi maximum; hole sizes 0.44–0.81 in; includes PUD-1100B pump, four punch/die sets, HC-7206 hose, CR-400 coupler, steel case

Product Information

Standard Information

• Brand: ENERPAC
• Manufacturer Part Number: SP35SP
• Country of Origin: China

Technical Specifications

• Brand: Enerpac
• MPN: SP35SP
• Model: SP35SP
• Product Type: Hydraulic punch and standard die set
• Series: SP
• Capacity (Tons): 35 ton
• Maximum Operating Pressure (psi): 10,000 psi
• Hole Sizes (in): 0.44 in, 0.56 in, 0.69 in, 0.81 in
• Bolt Sizes (in): 3/8 in, 1/2 in, 5/8 in, 3/4 in
• Cylinder Return Type: Single-Acting, Spring Return
• Pump Model Included: PUD-1100B
• Pump Voltage: 115 VAC
• Hose Included: HC-7206
• Coupler Included: CR-400
• Die Sets Included: SPD-438, SPD-563, SPD-688, SPD-813
• Oil Capacity (cu in): 4.58
• Width: 3.85 in (97.8 mm)
• Weight (as listed): 87.4 lb
• UPC: 662005319954
• Country of Origin: China
• Includes: Punch, standard die sets, pump, hose, coupler, steel case
• Working Application: Punching
