Enerpac SP35S Punch 35 Ton (4 Punch and Die Sets)

Product Description

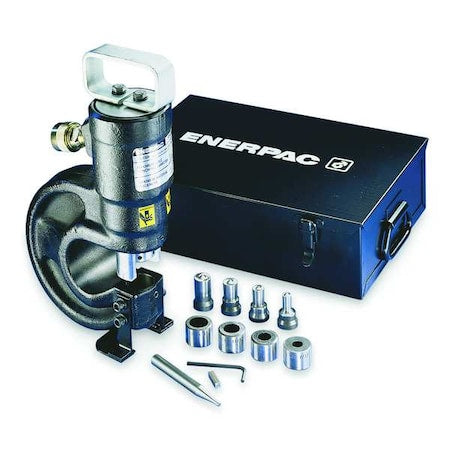

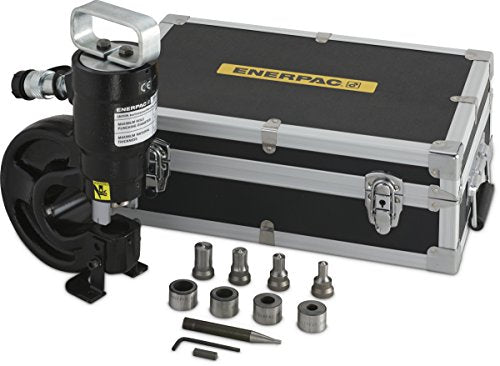

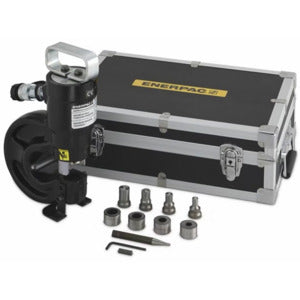

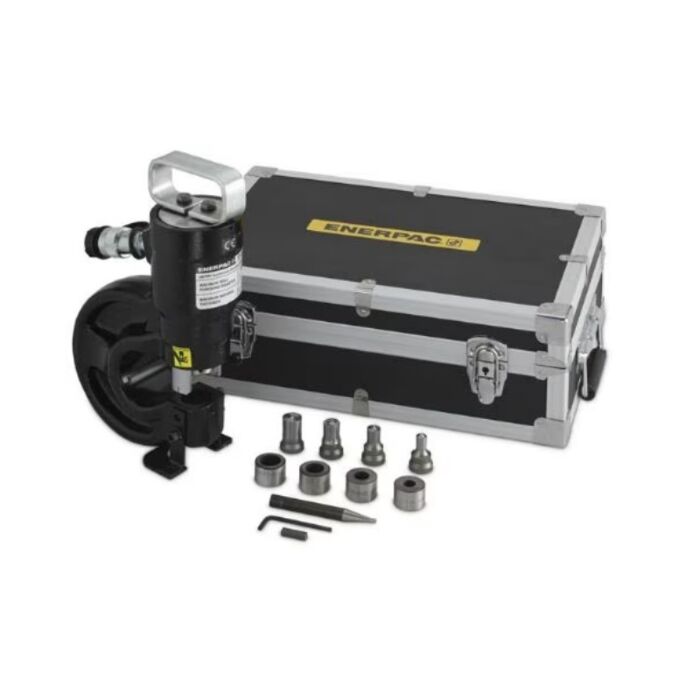

Enerpac SP35S is a 35-ton hydraulic punch and standard die set for creating circular holes in metal. The SP35S uses a single-acting, spring-return cylinder rated to 10,000 psi, with 4.58 in3 oil capacity, delivering up to 35 tons of force. The set includes four punch and die sizes (0.44, 0.56, 0.69, 0.81 in), a tool kit, coupler, and steel case, and works with hand, air, and electric pumps for fabrication and maintenance.

• 35 ton capacity with single-acting, spring-return cylinder rated to 10,000 psi
• Includes four punch and die sizes (0.44, 0.56, 0.69, 0.81 in), SPK10 tool kit, coupler, and metal storage case
• Punches circular holes in mild steel up to 0.50 in thick; compatible with hand, air, and electric pumps

Product Highlights

35-ton hydraulic punch set with spring-return cylinder, four die sizes, 10,000 psi rating, and included tool kit.

Product Information

Standard Information

• Brand: ENERPAC
• Manufacturer Part Number: SP35S
• Country of Origin: China

Technical Specifications

• Brand: Enerpac
• Manufacturer Part Number: SP35S
• Model: SP35S
• Series: SP Series
• Product Type: Hydraulic punch and standard die set
• Capacity: 35 ton
• Maximum Operating Pressure: 10,000 psi (700 bar)
• Cylinder Return Type: Single-Acting, Spring Return
• Oil Capacity: 4.58 in3
• Hole Sizes (in): 0.44, 0.56, 0.69, 0.81
• Hole Shape: Circle
• Maximum Mild Steel Thickness: 0.50 inch
• Included Accessories: Four punch and die sets, SPK10 tool kit, bench mount bracket, die changeover tools, CR400 coupler, 3/8 in coupler, metal storage case
• Compatible Pumps: Hand, air and electric powered pumps
• Country of Origin: China
• Application: Punching circular holes in mild steel and structural materials
