Enerpac SNA10TB 10 Ton Hydraulic Repair Kit

Product Description

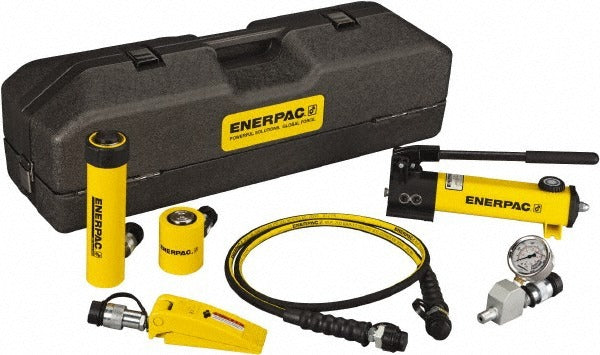

The ENERPAC SNA10TB is a hydraulic maintenance and repair kit rated for 10 tons of force at a maximum working pressure of 10,000 psi. The kit centers on a hydraulic cylinder with a 2.25-inch outside diameter, a 1.5-inch piston diameter, and a 6.125-inch piston stroke, giving technicians a complete service package for hydraulic pressing, lifting, and holding applications. It includes a cylinder, pump, hoses, couplers, and a carrying case — everything needed to perform maintenance tasks without sourcing individual components. Weighing 43 pounds, this kit is intended for use by hydraulic equipment technicians and industrial maintenance professionals in demanding service environments.

The SNA10TB is suited for industrial maintenance, repair operations, and field service work where a self-contained hydraulic system is required. The included pump (P-142) and cylinder (RC-106) combination makes it appropriate for general-purpose hydraulic tasks such as pressing bearings, straightening components, and applying controlled force in tight or remote locations. The 6-foot hose provides working clearance between the pump and cylinder during operation. Both light industrial shops and heavy maintenance facilities use kits of this type for scheduled and unscheduled repair work.

Key Features

• 10,000 psi maximum working pressure for high-force hydraulic applications
• 6.125-inch piston stroke with a 1.5-inch piston diameter for extended reach and controlled travel
• Includes cylinder RC-106, pump P-142, 6-foot hose, couplers, and a free carrying case for organized field use
• 2.25-inch outside diameter cylinder fits into confined work spaces
• 13.7 cubic-inch oil capacity supports full stroke operation without frequent refilling
• Complete kit format eliminates the need to source and match individual hydraulic components

Compatibility

The SNA10TB kit includes ENERPAC components FZ1055, GA45GC, HC9206, P142, RC106, RCS101, and WR5. It is designed as a self-contained hydraulic maintenance kit built around the RC-106 cylinder and P-142 pump. Consult ENERPAC documentation to confirm compatibility with existing hydraulic circuits or accessories before integrating kit components into a larger system.

Installation Notes

Hydraulic maintenance kits of this type are serviced by qualified hydraulic technicians or industrial maintenance mechanics familiar with high-pressure hydraulic systems. Before connecting or disconnecting any hydraulic component, relieve all system pressure and verify that all fittings are clean and free of debris. Follow applicable ANSI and ASME safety standards for hydraulic tools during setup and operation. Never exceed the rated working pressure of 10,000 psi on any component in the kit.
