Enerpac SCL1002H 100 Ton Hydraulic Pump Cylinder Set

Product Description

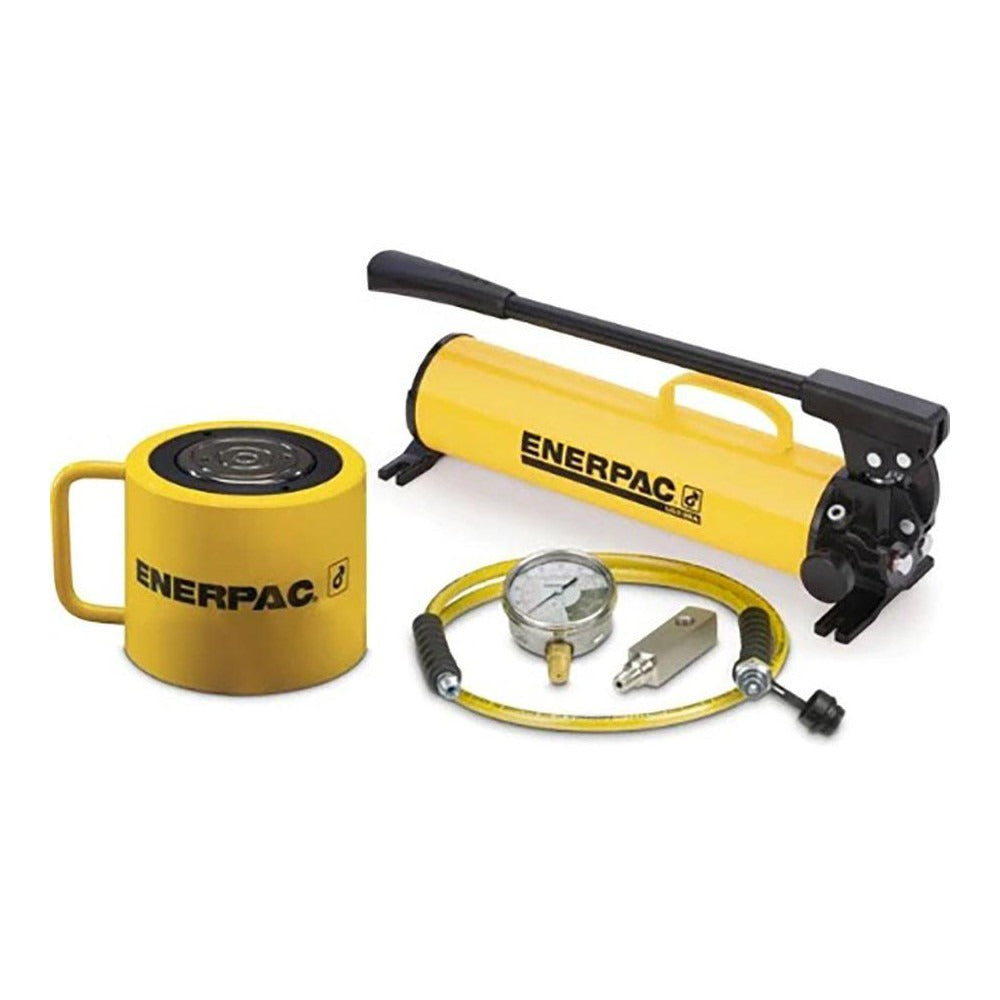

The ENERPAC SCL1002H is a complete manual hydraulic pump and cylinder set rated for 100 tons of force at a maximum working pressure of 10000 psi. The set centers on the RCS-1002 cylinder, which delivers a 2.25-inch stroke from a retracted length of 5.56 inches. Everything needed for a self-contained hydraulic operation ships together: a two-speed manual pump, a 6-foot hose, and a calibrated pressure gauge with gauge adaptor. This set is used by millwrights, maintenance technicians, and industrial mechanics for pressing, lifting, and force-fit applications where portable hydraulic power is required.

The SCL1002H is suited for industrial maintenance, structural alignment, and heavy equipment service work where a compact, high-force hydraulic unit is needed without a powered pump source. The two-speed pump allows rapid low-pressure advance followed by high-pressure output at full load. The included calibrated gauge gives the operator real-time pressure monitoring, supporting controlled, repeatable force application in shop or field environments.

Key Features

• 100 ton force capacity at 10000 psi maximum working pressure
• RCS-1002 cylinder with 2.25-inch stroke and 5.56-inch retracted length
• Two-speed manual pump for fast advance and high-pressure output
• Includes 6-foot hose for flexible cylinder positioning
• Calibrated pressure gauge with gauge adaptor for accurate load monitoring
• Complete set — cylinder, pump, hose, and gauge included

Compatibility

Designed as a matched pump-and-cylinder set built around the ENERPAC RCS-1002 cylinder and P-80 two-speed manual pump. Components are factory-matched for rated pressure and flow compatibility within this set.

Installation Notes

Installation and operation should be performed by a qualified mechanic or technician familiar with hydraulic systems. Confirm all hydraulic connections are fully seated and the system is depressurized before disconnecting any fittings or hose couplers. Follow all applicable OSHA and facility safety standards when operating hydraulic equipment under load. Never exceed the rated working pressure of 10000 psi on any component in the circuit.
