Enerpac SCL-502H Handpump with 50 Ton RCS

Product Description

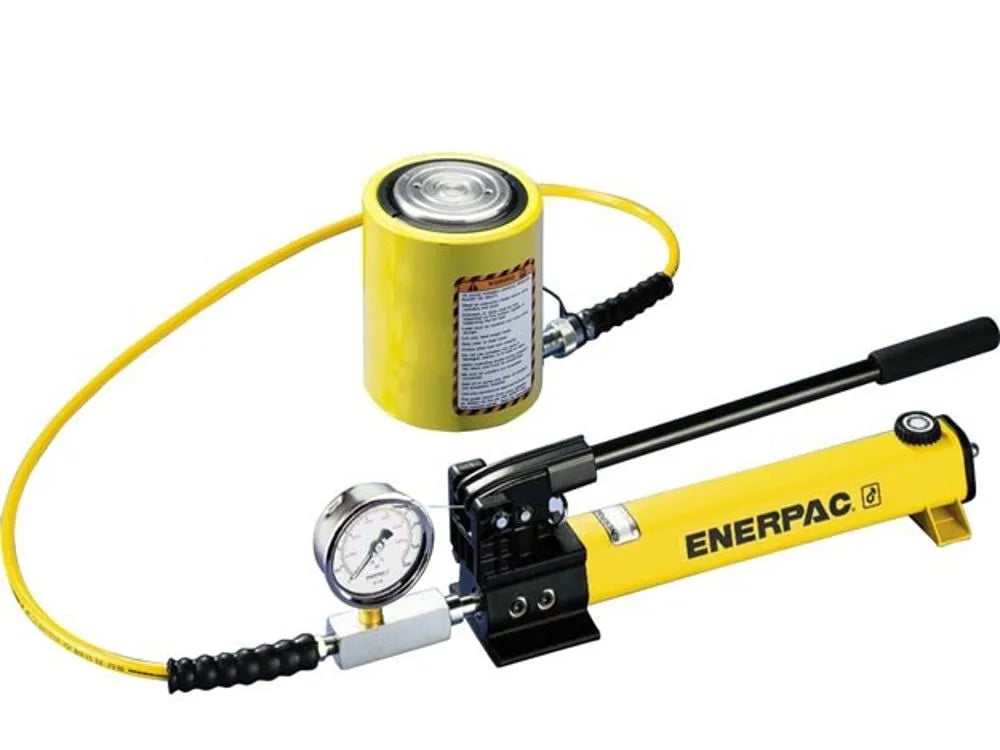

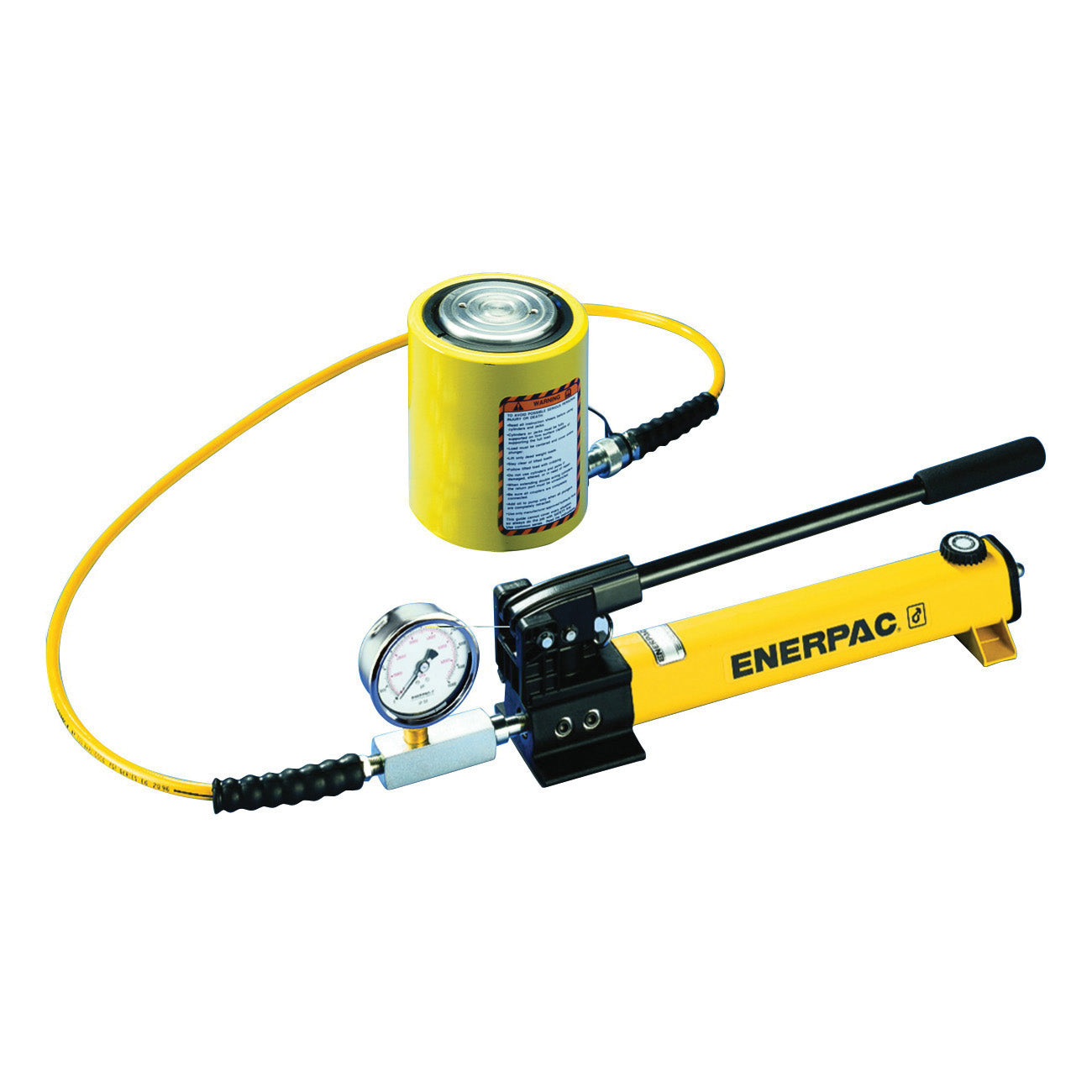

Enerpac SCL-502H is a single-acting low-height cylinder and hand pump set that pairs an RCS502 cylinder with a P-392 hand pump. The set provides a nominal 50 ton capacity, 2.38 in stroke, and a 10,000 psi maximum operating pressure for lifting and pressing in confined areas. Reported kit items include a 6 ft safety hose, calibrated gauge with adapter, and a two-speed hand pump for controlled pressure application.

• Single-acting low-height RCS502 cylinder: 50 ton capacity, 2.38 in stroke, collapsed height 4.81 in, extended height 7.19 in
• P-392 two-speed hand pump rated to 10,000 psi; includes 6 ft safety hose, calibrated gauge and gauge adapter
• Set characteristics: single-stage operation for high force in confined areas; maximum handle effort 93 lbs

Product Highlights

Low-profile 50 ton cylinder and two-speed hand pump set; 2.38 in stroke; 10,000 psi rating; includes hose and calibrated gauge

Product Information

Standard Information

• Brand: ENERPAC
• Manufacturer Part Number: SCL-502H
• Country of Origin: United States

Technical Specifications

• Brand: Enerpac
• MPN: SCL-502H
• Product Type: Cylinder and hand pump set (single-acting low-height)
• Series: SCL / SC Series
• Cylinder Model: RCS502
• Pump Model: P-392 (two-speed hand pump)
• Capacity: 50 Ton
• Stroke: 2.38 in
• Collapsed Height: 4.81 in
• Extended Height: 7.19 in
• Pressure Rating: 10000 psi
• Max Operating Pressure: 10000 psi
• Cylinder Action: Single-acting
• Pump Type: Two-speed hand pump
• Hose Length: 6 ft safety hose
• Gauge: Calibrated gauge with gauge adapter
• Included Components: RCS502 single-acting cylinder, P-392 hand pump, 6 ft safety hose, calibrated gauge, gauge adapter
• Weight: 41.07
• Material: Steel
• Max Handle Effort: 93 lbs
• UPC: 662005803897
• GTIN / EAN: 0662005803897
• Country of Origin: CN
