Enerpac SCH302H Hand Pump Maintenance Set 30 Ton (2.5 in Stroke)

Product Description

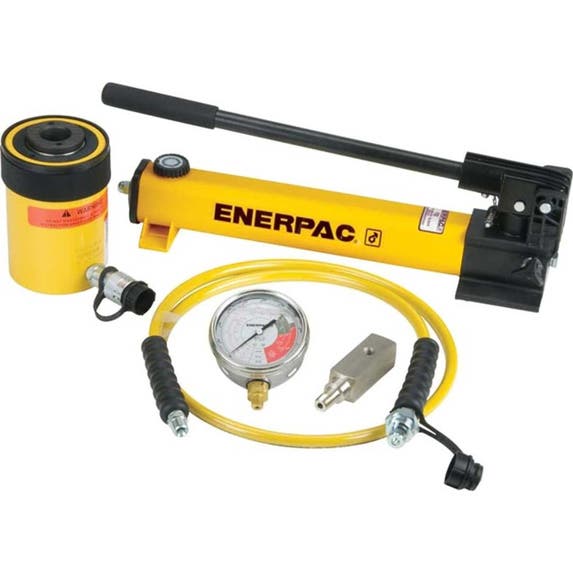

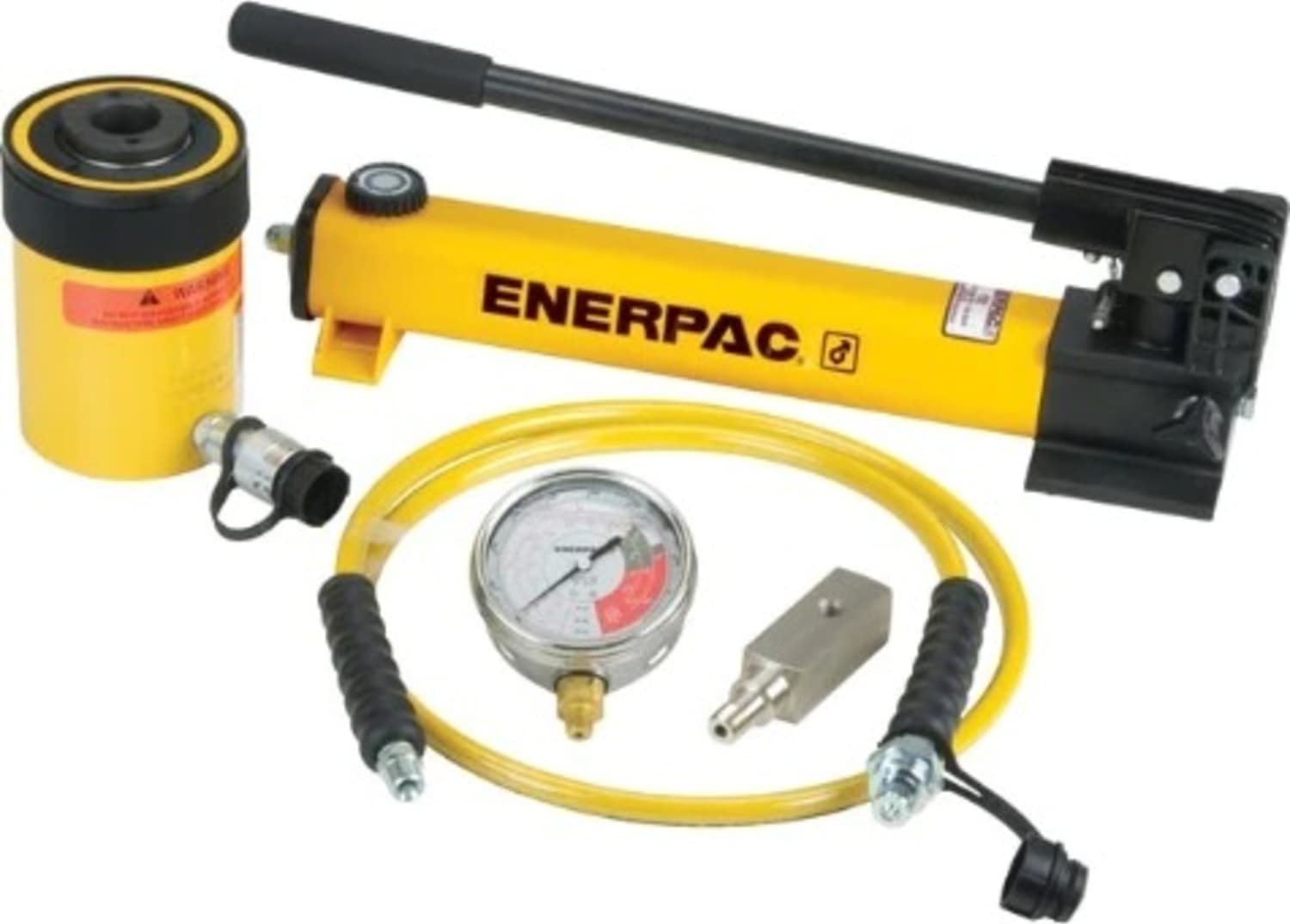

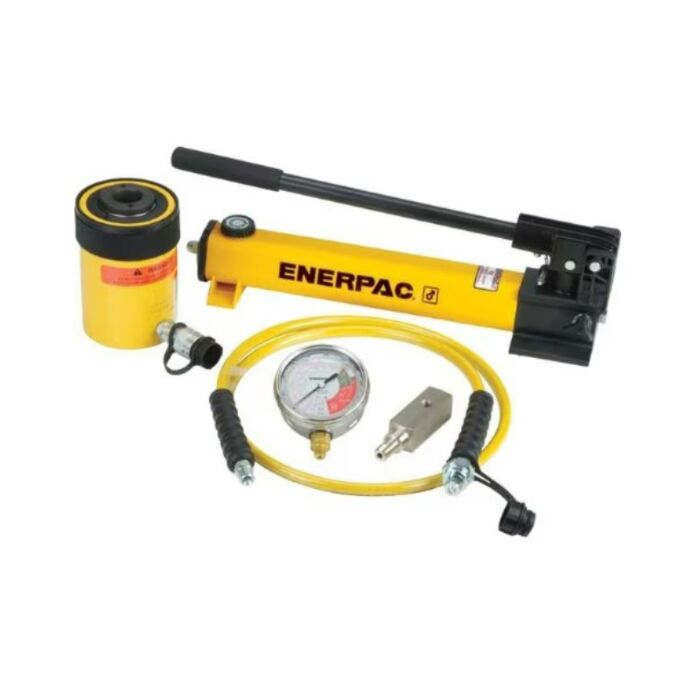

Enerpac SCH302H is a hydraulic hand pump and hollow cylinder maintenance set that pairs an RCH-302 single-acting hollow cylinder with a P-392 two-speed hand pump. The set provides a nominal 30 ton capacity, a 2.5 in cylinder stroke and a maximum operating pressure of 10,000 psi. Included components support calibrated pressure monitoring and through-bore operations for lifting, pressing and pulling tasks.

• Nominal 30 ton cylinder capacity, 2.5 in stroke, 7.03 in collapsed height
• Includes P-392 two-speed hand pump, HC-7206 safety hose (6 ft), GF-813P gauge and GA-3 gauge adapter
• Hand pump rated to 10,000 psi; hollow single-acting cylinder design for through-bore operations

Product Highlights

30 ton hollow single-acting cylinder with 2.5 in stroke; two-speed P-392 hand pump rated to 10,000 psi; kit includes hose, gauge and gauge adapter.

Product Information

Standard Information

• Brand: ENERPAC
• Manufacturer Part Number: SCH302H
• Country of Origin: China

Technical Specifications

• Brand: Enerpac
• MPN: SCH302H
• Product Type: Cylinder and Hand Pump Set
• Cylinder Type: Hollow single-acting
• Capacity: 30 ton (nominal)
• Stroke: 2.5 in (64 mm)
• Collapsed Height: 7.03 in (178 mm)
• Maximum Operating Pressure: 10,000 psi (700 bar)
• Pump Type: Hand, two-speed

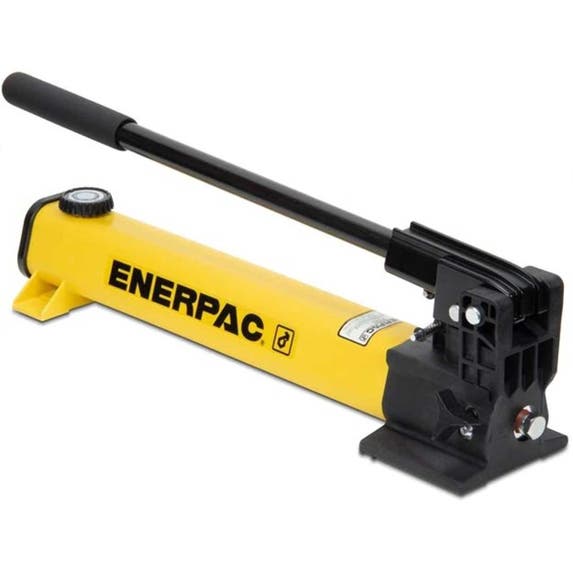

• Pump Model: P-392 (6W462 referenced)
• Hose: HC-7206 thermoplastic safety hose, 6 ft
• Gauge: GF-813P calibrated pressure gauge
• Gauge Scale: 0-22,200 psi

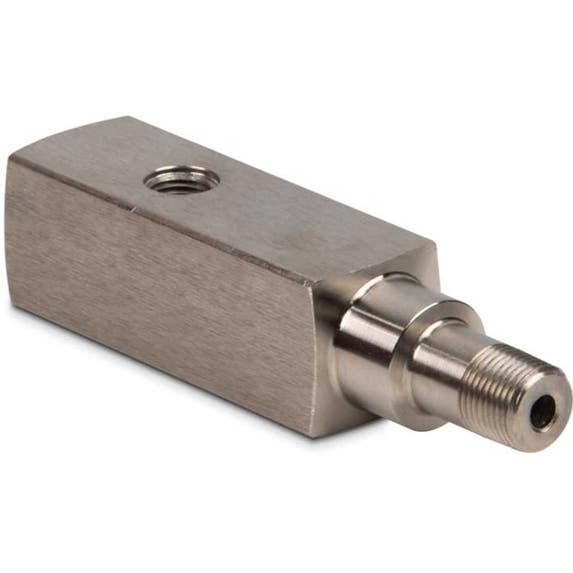

• Gauge Adapter: GA-3
• Max Handle Effort: Approximately 93 lb
• Weight: 43.0 lb
• Included Components: RCH-302 cylinder, P-392 hand pump, HC-7206 hose, GF-813P gauge, GA-3 gauge adapter
• UPC: 662005803491
• Series: SCH (porta power/cylinder and pump set)
• Country of Origin: China
