Product Description

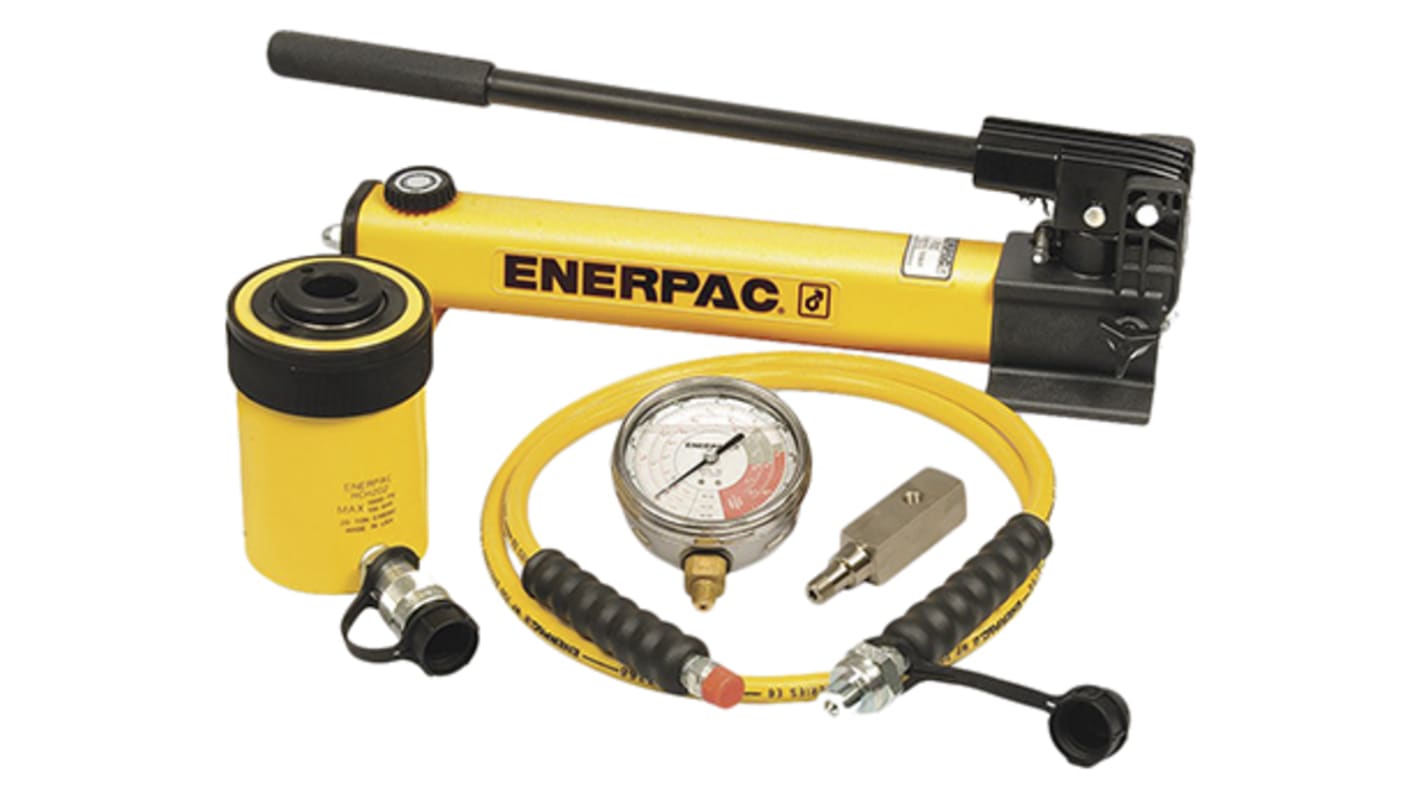

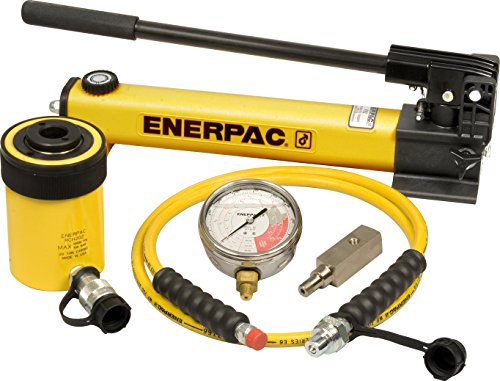

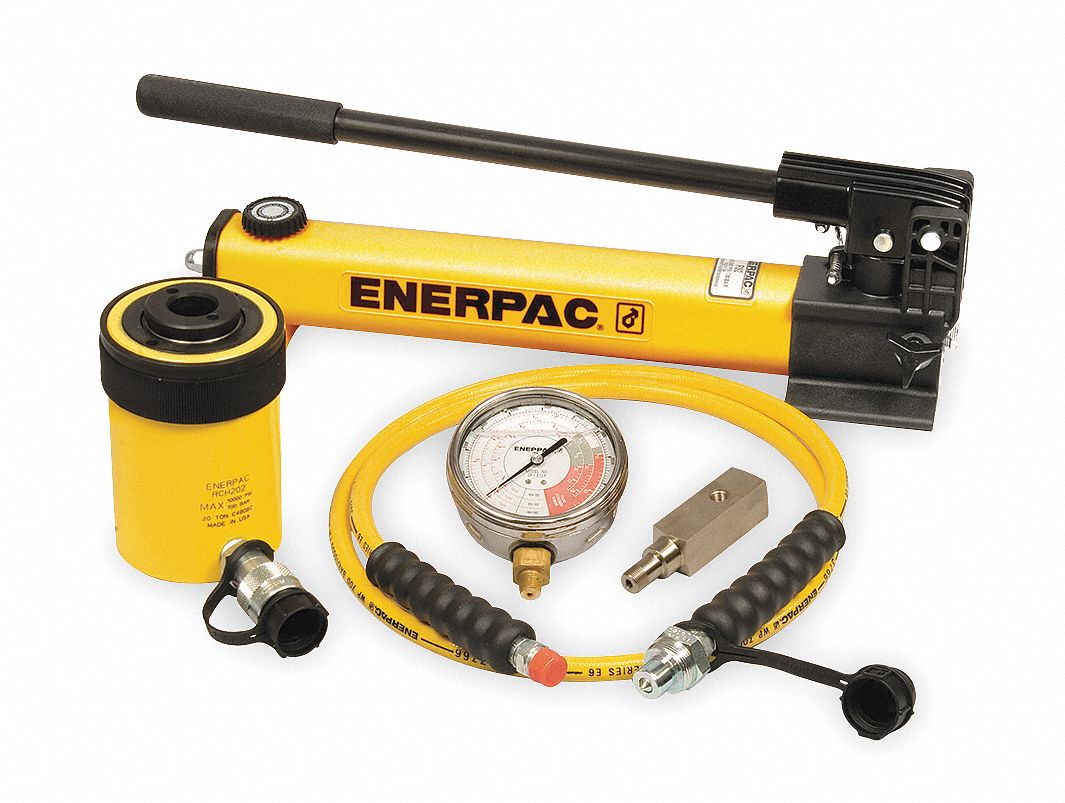

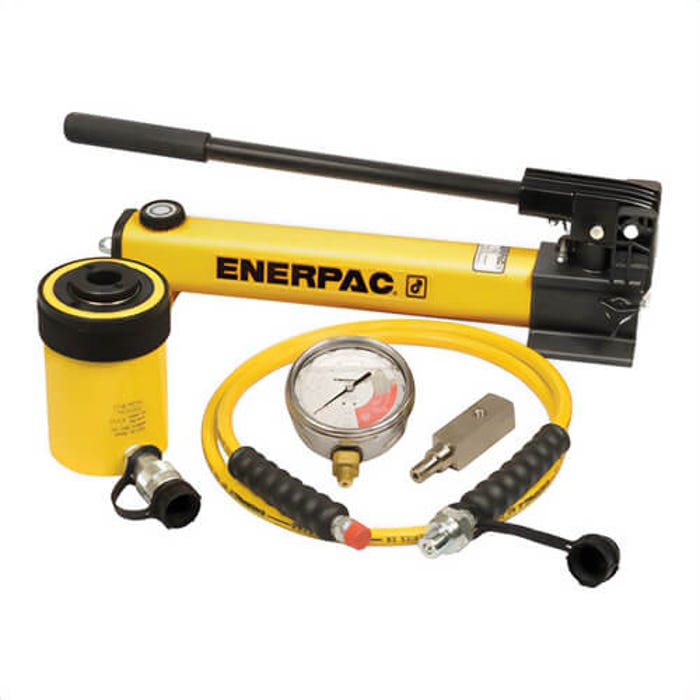

The Enerpac SCH-202H is a hollow hydraulic cylinder and hand pump set that provides 20 ton capacity for lifting, pushing, and pulling applications. The set pairs an RCH series single-acting hollow cylinder (2 in stroke, 6.31 in collapsed height) with a two-speed hand pump and calibrated gauge. Rated to 10,000 psi (700 bar), the kit includes a 6 ft hose, gauge adapter, and safety valve for overload protection.
- 20 ton (215 kN) single-acting hollow cylinder with 2 in (49 mm) stroke and 6.31 in (162 mm) collapsed height
- Two-speed manual hand pump (P-392) rated to 10,000 psi (700 bar) with safety valve, calibrated gauge, and gauge adapter
- Includes RCH-202 hollow cylinder, P-392 hand pump, 6 ft (1.8 m) hose; suitable for lifting, pushing, pulling, tensioning, and through-hole applications
Product Highlights
20 ton hollow-bore single-acting cylinder, 2 in stroke, 10,000 psi rating; two-speed hand pump with hose and calibrated gauge
Product Information
Standard Information
-
Brand: ENERPAC
-
Manufacturer Part Number: SCH-202H
-
Country of Origin: United States
Technical Specifications
-
Brand: Enerpac
-
MPN: SCH-202H
-
Model: SCH202H / RCH-202
-
Product Type: Hollow hydraulic cylinder and hand pump set
-
Cylinder Capacity: 20 ton (215 kN)
-
Stroke: 2 in (49 mm)
-
Collapsed Height: 6.31 in (162 mm)
-
Extended Height: 8.31 in (211 mm)
-
Maximum Operating Pressure: 10,000 psi (700 bar)
-
Action Type: Single acting
-
Cylinder Type: Hollow-bore (RCH series)
-
Pump Type: Two-speed hand pump (manual)
-
Pump Model: P-392
-
Hose Length: 6 ft (1.8 m)
-
Gauge: Calibrated gauge included
-
Gauge Adapter: Included
-
Safety Valve: Pump fitted with safety valve to prevent overload
-
Max Handle Effort: 93 lb
-
Includes: RCH-202 single-acting hollow cylinder; P-392 two-speed hand pump; 6 ft (1.8 m) hose; calibrated gauge; gauge adapter; safety valve
-
Dimensions: 24 x 13 x 9 in
-
Weight: 38.0
-
Package Quantity: 1
-
UPC: 662005803477
-
ASIN: B00637765Q
-
Country of Origin: China (subject to change)
