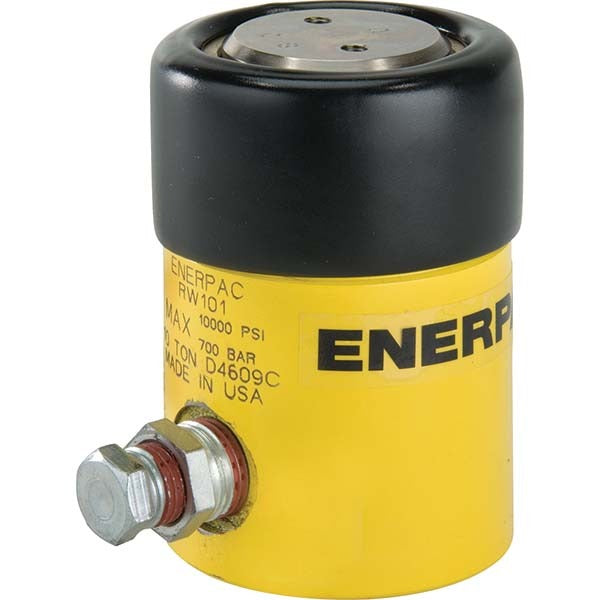

Enerpac RW101 Compact Hydraulic Cylinder Base Mount Steel

Product Description

The ENERPAC RW101 is a single-acting compact hydraulic cylinder designed for high-force pushing and pressing applications in industrial and maintenance environments. Single-acting actuation means hydraulic pressure extends the ram, with spring or gravity return completing the stroke cycle. The steel body construction provides durability under the demanding load and pressure conditions typical of hydraulic tooling work. At 3.8 pounds, this cylinder is light enough for portable setups while maintaining the structural integrity expected of ENERPAC hydraulic tooling. It mounts via a base mounting hole, allowing secure fixture to a work surface or dedicated tooling frame.

The RW101 is suited for use in fabrication shops, maintenance bays, and industrial facilities where controlled linear force is needed in a compact footprint. Typical applications include bearing press work, straightening, punching, and clamping operations. The base mounting hole configuration makes it appropriate for bench-mounted or fixture-integrated setups where the cylinder must stay stationary during the work cycle. This cylinder is installed and serviced by millwrights, hydraulic technicians, and maintenance mechanics familiar with hydraulic circuit assembly.

Key Features

• Single-acting actuation with hydraulic extension and spring or gravity return
• Steel body construction for strength and resistance to mechanical damage
• Base mounting hole for secure, stationary fixture mounting
• Compact form factor at 3.8 pounds for portable and bench-mounted use
• Suited for pressing, clamping, straightening, and punching operations

Compatibility

Designed as an OEM-style compact hydraulic cylinder for use with compatible ENERPAC hydraulic hand pumps and power units operating within the rated system pressure of this cylinder series.

Installation Notes

Installation should be performed by a qualified hydraulic technician or millwright familiar with hydraulic circuit assembly and pressure-rated fittings. Depressurize and isolate the hydraulic system completely before connecting or disconnecting this cylinder. Ensure all hydraulic connections meet the pressure rating of the cylinder and use appropriate thread sealant on hydraulic fittings per the system manufacturer guidelines. Do not exceed the rated capacity of the cylinder during operation.
