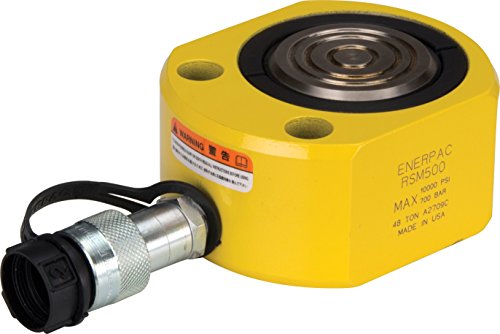

Enerpac RSM500 Flat Jac Single-Acting Low-Height Hydraulic Cylinder 50 Ton

Product Description

The Enerpac RSM500 is a flat jack hydraulic cylinder designed for low-height applications. With a capacity of fifty tons, this single-acting cylinder is ideal for lifting and pushing tasks in industrial settings. The unit features a stroke length of five eighths inches, making it suitable for confined spaces.

• Nominal capacity of 50 tons
• Stroke length of 5/8 inches
• Maximum pressure of 10,000 psi

Product Highlights

This hydraulic cylinder is constructed from steel for durability and reliability. It includes a dust cap and a female coupler for easy connection to hydraulic pumps. The low-profile design allows for use in tight spaces.

Product Information

Standard Information

• Brand: Enerpac
• Model: RSM500

Technical Specifications

• Type: Flat
• Single Acting/Double Acting: Single Acting
• Body Material: Steel
• Max Push Capacity: 50 ton
• Effective Push Area: 9.62 sq in
• Nominal Stroke Length: 5/8 in
• Extended Height: 3.25 in
• Retracted Height: 2.63 in
• Outside Diameter: 5.50 in x 4.50 in
• Plunger Diameter: 2.75 in
• Center Hole Diameter: 3.5 in
• Oil Capacity Push: 6.01 cu in
• Effective Area: 9.62 sq in
• Country of Origin: China
• Promotion Restriction: Not eligible for promotion
